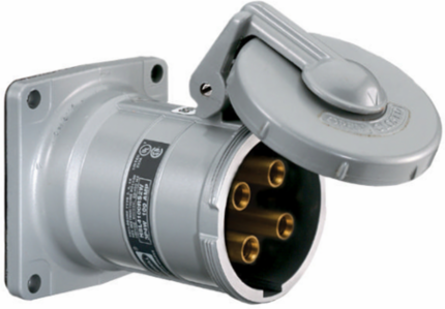

Hubbell Wiring Device-Kellems HBL3100RS2WR Insulgrip 100A Watertight Female Receptacle, 2-Pole 3-Wire, 600V AC
- MPN: HBL3100RS2WR
- UPC: 783585012056
- PPN: HBL-HBL3100RS2WR
- UNSPSC: 39121406
CAD
$1004.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Heavy Duty Insulgrip Pin and Sleeve Devices, Industrial Grade Female Receptacle, 100A 600V AC, 2-Pole 3-Wire Grounding Style 2,Terminal Screws
Features
- Watertight neoprene sealing glands for reliable seal
- Spring-Loaded, gasketed cover for dust-tight seal
- Pin chamber confines arcing within the interior chamber
- Watertight
Documentation & Downloads
Specifications
Additional
- Amperage
- 100 A
- Number of Poles
- 2-Pole
- Wattage
- 60000 W
- Wire Size
- #3 AWG to #1/0 AWG
- Type
- Watertight Receptacle
- Material - Mounting Hardware
- Screw Mounting
- Connectivity
- Pressure Terminal Screws
- Standards / Compliance
- CSA Spec. C22.2 No. 182.1; UL 1682 Listed and CSA Certified Type 4X; RoHS Compliant
- Min Operating Temperature
- -40 C without impact, -25 C with impact
Voltage600 VAC / 250 VDC
Number of Wires3-Wire
PhaseSingle Phase
Grounding StyleReversed Service, Style 2
MaterialThermoplastic
Seal TypeNeoprene Gasket, Neoprene Sealing Glands
NEMA RatingNon-NEMA
Max Operating Temperature75 C
Country of OriginUS
