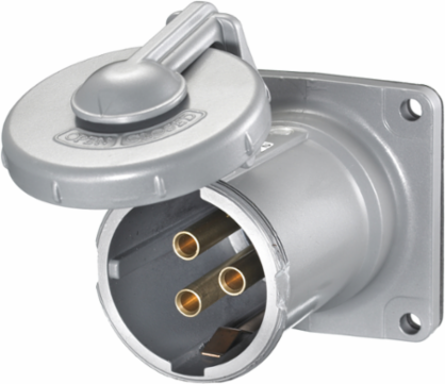

Hubbell Wiring Device-Kellems HBL4100RS1WR Heavy Duty Insulgrip Female Receptacle, 100A 600V AC, 3-Pole, Watertight
Hubbell Wiring Device-Kellems HBL4100RS1WR Heavy Duty Insulgrip Female Receptacle, 100A 600V AC, 3-Pole, Watertight
- MPN: HBL4100RS1WR
- UPC: 783585012261
- PPN: HBL-HBL4100RS1WR
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$861.48/ EA
Description
Heavy Duty Products, Insulgrip Pin and Sleeve Devices, Industrial Grade, Female, Receptacle, 100A 600V AC, 3- Pole 4-Wire Grounding, Terminal Screws, Gray and Black, Watertight-
Features
- Watertight neoprene sealing glands for reliable seal
- Spring-Loaded, gasketed cover for dust-tight seal
- Pin chamber confines arcing within the interior chamber
- Watertight
Specifications
Specifications
- Country of Origin
- US
- Width
- 5.400 in
- Industry Standard(s)
- CSA Certified to CSA Spec. C22.2 No. 182.1;UL Listed and CSA Certified Type 4X;UL Standard 1682
- Standards - RoHS Compliance Status
- CM
- Application
- Metallic with Nylon Shroud
- NEMA Rating
- Non-NEMA
- Number of Wires
- 4-Wire
- Special Features
- Watertight
- Type
- Watertight Receptacle
- Wattage
- 60000
- Voltage Rating Description
- 600V AC/250V DC
- Display Size
- Standard Sized Product
- Number Of Poles
- 3-Pole
- Style
- Reversed Service, Style 1
- Description - Invoice
- PS, INS, RECP, 3P4W, 100A 600V, S1 REV
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Mounting
- Material
- Thermoplastic
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 31.150 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10
- Each - Pack Description
- Each
Current / Amperage Rating100 A
Each - Width5.400 in
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 3,000V AC;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability (Enclosure) - UL 94V-0 and CSA C22.2 No. 0.17;Environmental - Moisture Resistance - Type 3, 4, 4X per UL 50E and CSA 22.2, No. 94;Environmental - Operating Temperatures - Max. Continuous 75°C;Min. -40°C w/o impact -25° with impact;Mechanical - Impact Resistance - Per CSA C22.2, No. 182.1, UL 1682;Mechanical - Product Identification - Identification and ratings are permanently fastened to the device housing;Mechanical - Terminal Identification - Terminals identified in accordance with UL 1686(1, 2, 3, Green)
Amperage Rating100 A
Environmental ConditionsWatertight
Number of Poles3-Pole
PhaseSingle/Three
StandardCSA Certified to CSA Spec. C22.2 No. 182.1;UL Listed and CSA Certified Type 4X;UL Standard 1682
Voltage Rating600 VAC/250 VDC
Wire Size#3 AWG to #1/0 AWG
ConnectivityPressure Terminal Screws
Nema RatingNon-NEMA
Number Of Wires4-Wire
Class CodeA12
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA12A200
Current Rating100 A
SeriesUL 1686 Class 1 Insulgrip®
BOX SIZE16.600x16.200x12.000 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack00783585012261
Case Weight31.150 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
