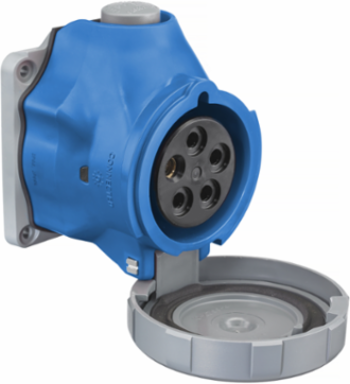

Hubbell Wiring Device-Kellems HBLS530R9W Watertight IEC Pin & Sleeve Switched Receptacle 30A 4-Pole 5-Wire
- MPN: HBLS530R9W
- UPC: 783585550565
- PPN: HBL-HBLS530R9W
- UNSPSC: 39121402
CAD
$963.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Heavy Duty Pin and Sleeve Devices, Switched, IEC 309,Receptacle, 30A 120/208V, 4-Pole 5-Wire Grounding, NEMA 4X/IP67,Watertight
Features
- Mates with existing installed base of IEC 60309-2 pin and sleeve devices
- Approved as a diconnecting means for motor circuits and branch circuits
- UL Type 4X, 12 and IP69k environmental ratings
- Impact and corrosion-resistant PBT that is color coded by voltage
- Unswitched ground and power indicating LED lights
Specifications
Additional
- Amperage
- 30/32 A
- Number of Poles
- 4-Pole
- Dielectric Voltage
- 3000V AC
- Width
- 5.250 in
- Material
- PBT
- Closure Covers Material
- PBT
- Operating Temperature Range
- -40b0C to 75b0C
- Compliance
- UL Listed, CSA Certified, UL Classified IEC 60309-1/60309-2
- Country of Origin
- US
Voltage3 Phase Y 120/208 VAC
Number of Wires5-Wire
Max Working Voltage600V RMS
StyleIP69K, NEMA 4X
Sealing GasketSolid Neoprene, Santoprene
Retainer MaterialHigh-Impact Thermoset
FlammabilityV-0
ColorBlue
