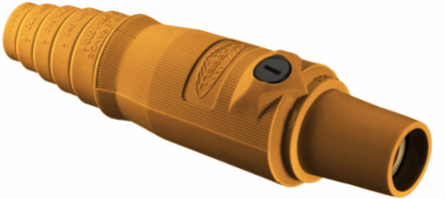

Bryant HBL300FO Industrial Grade 300A 600V AC/DC Female Plug with Double Set Screws, Orange
- MPN: HBL300FO
- UPC: 783585112046
- PPN: HBL-HBL300FO
- UNSPSC: 39121402
CAD
$73.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Heavy Duty Products, Single Pole Devices, Industrial Grade, Female, Plug, 300A 600V AC/DC, Single Conductor, Double Set Screws, Orange
Features
- Extra Long non-conductive inner sleeve
- Turn and Lock Symbol aids in the mating of devices
- Easily Identifiable Cable with cut off points for secure fit
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Width
- 7.500 in
- Performance
- Electrical - Amperage Rating - 400A Maximum;Electrical - Voltage Ratings - 600V AC Maximum;250V DC Maximum;Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17;Mechanical - Product Identification - Ratings are a permanent part of device;Mechanical - Terminal Accommodation - #6 to 2/0 AWG
- Color
- Orange
- Type
- Plugs
- Style
- Female
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Series
- 16 Series
- BOX SIZE
- 9.100x14.400x12.900 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585112046
- Case Weight
- 40.700 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 45.500 in
- Pallet Weight
- 2035.000 lb.
Current / Amperage Rating300 A
Industry Standard(s)National Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
Amperage Rating300 A
StandardNational Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
Voltage Rating Description600V AC/DC
Description - InvoiceSINGLEPOLE, 300A FEMALE PLUG, ORANGE
Harmonization Code8536698000
MSDS FlagNo
Base Unit of MeasureEA
Carton - Gross Weight per Pack8.500 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585112045
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
