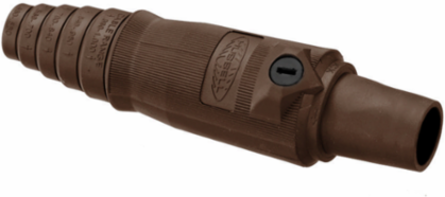

Bryant HBL400FBN Heavy Duty Female Plug 400A 600V AC/DC, 7.75 Inch Width, Brown
Bryant HBL400FBN Heavy Duty Female Plug 400A 600V AC/DC, 7.75 Inch Width, Brown
- MPN: HBL400FBN
- UPC: 783585432151
- PPN: HBL-HBL400FBN
- UNSPSC: 39121402
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$69.65/ EA
Description
Heavy Duty Products, Single Pole Devices, Industrial Grade, Female, Plug, 400A 600V AC/DC, Single Conductor, Double Set Screws, Brown
Features
- Extra Long non-conductive inner sleeve
- Turn and Lock Symbol aids in the mating of devices
- Easily Identifiable Cable with cut off points for secure fit
Specifications
Specifications
- Country of Origin
- CN
- Width
- 7.750 in
- Industry Standard(s)
- National Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
- Amperage Rating
- 400 A
- Standard
- National Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
- Voltage Rating Description
- 600V AC/DC
- Description - Invoice
- SINGLEPOLE, 400A FEMALE PLUG, BROWN
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 8.500 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 10.282 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 46.500 in
- Pallet Weight
- 1970.000 lb.
Current / Amperage Rating400 A
Each - Width7.750 in
PerformanceElectrical - Amperage Rating - 400A Maximum;Electrical - Voltage Ratings - 600V AC Maximum;250V DC Maximum;Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17;Mechanical - Product Identification - Ratings are a permanent part of device;Mechanical - Terminal Accommodation - 2/0 to 4/0 AWG
ColorBrown
TypePlugs
StyleFemale
Freight Class Code06168002
Image Actual Or RepresentativeA
Series16 Series
BOX SIZE9.300x14.800x12.400 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585432151
Case - Total Units100 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585432150
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
