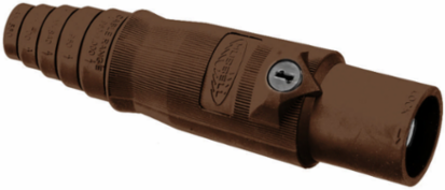

Bryant HBL400MBN Heavy Duty Male Plug, 400A 600V AC/DC, Brown, 2.9 Inch Width
- MPN: HBL400MBN
- UPC: 783585112282
- PPN: HBL-HBL400MBN
- UNSPSC: 39121402
CAD
$73.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Heavy Duty Products, Single Pole Devices, Industrial Grade, Male, Plug, 400A 600V AC/DC, Single Conductor, Double Set Screws, Brown
Features
- Insulgrip® Style Housing for Superior Gripping
- Non-Conductive Retaining Screw locks contacts in place
- Large Raised Alignment Arrow aids in the mating of devices
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Width
- 2.900 in
- Performance
- Electrical - Amperage Rating - 400A Maximum;Electrical - Voltage Ratings - 600V AC Maximum;250V DC Maximum;Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17;Mechanical - Product Identification - Ratings are a permanent part of device;Mechanical - Terminal Accommodation - 2/0 to 4/0 AWG
- Color
- Brown
- Type
- Plugs
- Style
- Male
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Series
- 16 Series
- BOX SIZE
- 9.200x15.000x12.800 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585112282
- Case - Total Units
- 100 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585112281
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Current / Amperage Rating400 A
Industry Standard(s)National Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
Amperage Rating400 A
StandardNational Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
Voltage Rating Description600V AC/DC
Description - InvoiceSINGLEPOLE, 400A MALE PLUG, BROWN
Harmonization Code8536698000
MSDS FlagNo
Base Unit of MeasureEA
Carton - Gross Weight per Pack8.500 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight10.558 lb.
Lowest Level UOMEach
Pallet Height46.000 in
Pallet Weight1910.000 lb.
Certifications
- EU RoHS Indicator
- Yes
