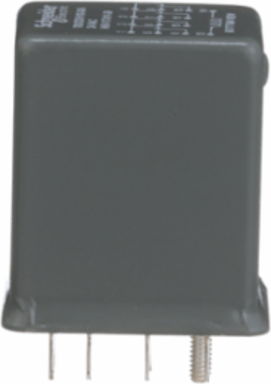

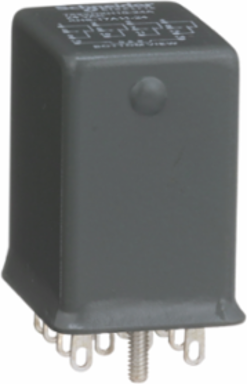

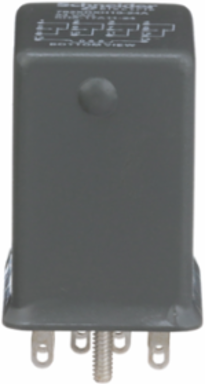

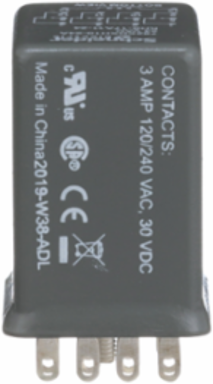

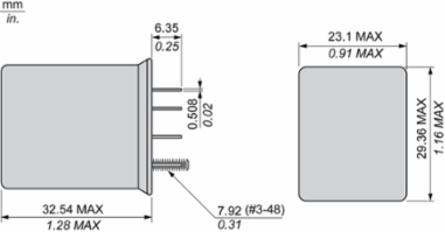

Schneider Electric 782XDXH10-12D Hermetically sealed plug-in relays, SE Relays, 3A, 4 CO, 12VDC
Schneider Electric 782XDXH10-12D Hermetically sealed plug-in relays, SE Relays, 3A, 4 CO, 12VDC
- MPN: 782XDXH10-12D
- PPN: SCH-782XDXH10-12D
- UNSPSC: 39122315
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$231.78/ EA
Description
This Plug-in general purpose relay belongs to the Schneider Electric Harmony electromechanical relays range. 782H hermetically sealed relay complies with UL Class I Division 2 requirements for use in hazardous locations. It's a 3A 4 CO contact configuration mechanical relay with nominal coil voltage of 12Vdc and coil resistance of 160Ω. This relay with multiple socket-mounting versions is an ideal choice for automation panels and controls. The gold flashed contact 4PDT configuration reduces oxidation and increases shelf life and gives simultaneous control of four separate circuits. Sockets are IP20 finger-safe and available in multiple configurations like Panel, DIN rail, PCB, and chassis mount. It weighs 0.045Kg. It is suitable for harsh, hazardous, and corrosive environments like offshore mining and refineries in the oil and gas, petrochemical, chemical, and mines and minerals sectors. Protection modules, hold-down clips, and plastic ID tag are available. It is sold in lots of 10. The 782H relays come with robust square base mounting platform and thus provides good structural support.
Specifications
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Dielectric Strength
- 1600 V AC between coil and contact, 1600 V AC between poles
- Carbon Footprint Of The Distribution Phase A4
- 0.0058844896900531705, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.007550849435870834, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 9 kg CO2 eq., 9.099246704331446
- Local Publishable Date
- 2026-01-12
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2403024EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- WD Status
- 5 - INITIALIZED WITH DataSCAN OK (Migration)
- Function Option
- Standard
- Catalog Class
- 782H
- Electrical Durability
- 100000 cycles resistive IEC
- Local Signalling
- without LED without lockable test button
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Harmony Electromechanical Relays
- Series Name
- 782H series
- Short Circuit Current
- 1 kA
- Total Lifecycle Carbon Footprint
- 10 kg CO2 eq.
- ITHE Conventional Enclosed Thermal Current
- 3 A
- Relationship Type
- Compatible relationship
- Pep Verification Date
- 2024-06-09
- PSR Version
- PSR-0005-ed2-2016 03 29
- Functional Unit Description
- 782 series plug-in general purpose relay offers robust and historically proven square base mounting relay platform that provides excellent structural support with clear cover with LED indication and locking push button. Gold flashed contact DPDT configuration reduces oxidation and increases shelf life gives simultaneous control of separate circuits.This product will be in active mode at 24% in overall power consumption of 1.77 W with life span of 10 years and adhering to UL standards.
- Product Manager
- ZHEN YIN
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
IE Rated Operational Current3 A at 120 V AC (on resistive load), 3 A at 240 V AC (on resistive load), 3 A at 30 V DC (on resistive load)
Carbon Footprint Of The End Of Life Phase C1 To C40.1 kg CO2 eq., 0.07257774607703282
Carbon Footprint Of The Manufacturing Phase A1 To A30.6 kg CO2 eq., 0.6187602126831798
Local Data StatusPublishable
Legacy WEEE ScopeOut
EOLI Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticYes
Return IndicatorY
Function Option IdSTANDARD
Associated Fuse Rating6 A gG at 400 V coordination type 2 for power circuit
Contacts Usagehermetically sealed
Environmental Characteristichazardous location T5 70 °C
Package Weight Lbs45 g
Product Or Component Typeplug-in relay
ReturnabilityYes
Shape Of Pinflat (faston type)
Sustainable PackagingYes
Vibration Resistance6 gn 10-55 Hz)
Connections Terminalsplug in
Pep CodeENVPEP2403024EN
PCR VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Product Kit IdentifierN
Environment Attributes Main
- EU ROHS Directive
- Compliant?, Pro-active compliance (Product out of EU RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 9.804020002217582
- Environmental Disclosure
- ENVPEP2403024EN
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-06-09
- PSR Version
- PSR-0005-ed2-2016 03 29
ROHS Exemption InformationYes
Reach Free SHVCYes
China ROHS RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2403024EN
Packaging Made With Recycled CardboardYes
Reach Free Of SVHCYes
Pep CodeENVPEP2403024EN
PCR VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Complementary Attributes
- Minimum Switching Current
- 100 mA 12 V AC, 100 mA 12 V DC
- Maximum Switching Voltage
- 240 V AC
IE Rated Operational Current3 A at 120 V AC (on resistive load), 3 A at 240 V AC (on resistive load), 3 A at 30 V DC (on resistive load)
UC Control Circuit Voltage12 V DC
General Attributes
- Product Or Component Type
- plug-in relay
Range Of ProductHarmony Electromechanical Relays
