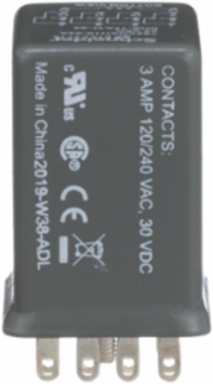

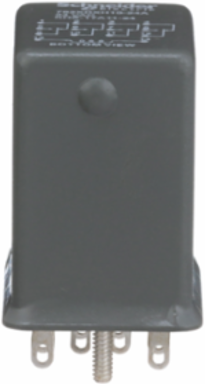

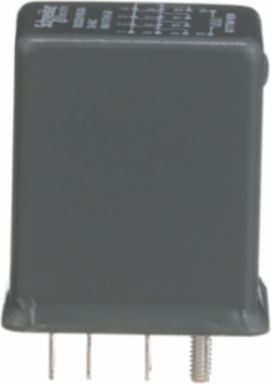

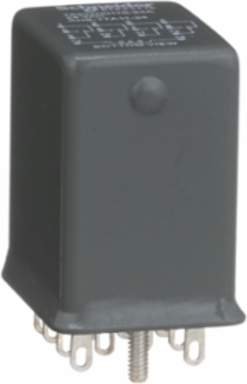

Schneider Electric 782XDXH10-120A Hermetically sealed plug-in relays, SE Relays, 3A, 4 CO, 120VAC
- MPN: 782XDXH10-120A
- PPN: SCH-782XDXH10-120A
CAD
$231.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Plug-in general purpose relay belongs to the Schneider Electric Harmony electromechanical relays range. 782H hermetically sealed relay complies with UL Class I Division 2 requirements for use in hazardous locations. It's a 3A 4 CO contact configuration mechanical relay with nominal coil voltage of 120Vac and coil resistance of 3900Ω. This relay with multiple socket-mounting versions is an ideal choice for automation panels and controls. The gold flashed contact 4PDT configuration reduces oxidation and increases shelf life and gives simultaneous control of four separate circuits. Sockets are IP20 finger-safe and available in multiple configurations like Panel, DIN rail, PCB, and chassis mount. It weighs 0.045Kg. It is suitable for harsh, hazardous, and corrosive environments like offshore mining and refineries in the oil and gas, petrochemical, chemical, and mines and minerals sectors. Protection modules, hold-down clips, and plastic ID tag are available. It is sold in lots of 10. The 782H relays come with robust square base mounting platform and thus provides good structural support.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China

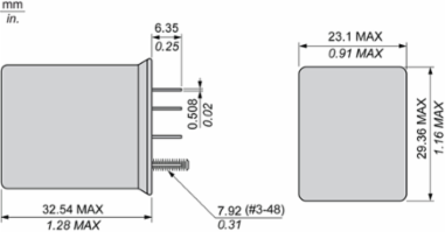

Depth28.75 mm
Complementary Attributes
- Minimum Switching Current
- 100 mA 12 V AC, 100 mA 12 V DC
- Line Rated Current
- 3 A
- Maximum Switching Voltage
- 240 V AC
Control Circuit TypeAC
Maximum Resistance3900 Ohm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Dielectric Strength
- 1600 V AC between coil and contact, 1600 V AC between poles
- Certificate Agency
- UL, CSA, CE
- [Uc] Control Circuit Voltage
- 120 V AC, 120 V
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.1 kg CO2 eq., 0.07257774607703282
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.6 kg CO2 eq., 0.6187602126831798
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 4
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Average Coil Consumption
- 1.20 VA
- Catalog Class
- 782H
- Contacts Type And Composition
- 4 C/O
- Control Type
- without lockable test button
- Environmental Characteristic
- hazardous location T5 40 °C
- Mechanical Durability
- 10000000 cycles
- Product Or Component Type
- plug-in relay
- Relay Type
- hermetically sealed relay
- Returnability
- Yes
- Shape Of Pin
- flat (faston type)
- Software Version
- v5.9.4
- Sustainable Packaging
- Yes
- Vibration Resistance
- 6 gn 10-55 Hz)
- Control Circuit Type2
- AC
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- 782 series plug-in general purpose relay offers robust and historically proven square base mounting relay platform that provides excellent structural support with clear cover with LED indication and locking push button. Gold flashed contact DPDT configuration reduces oxidation and increases shelf life gives simultaneous control of separate circuits.This product will be in active mode at 24% in overall power consumption of 1.77 W with life span of 10 years and adhering to UL standards.
- Reference Lifetime, In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; CN
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; US
- Height Nominal
- 32.5 mm
- [Ithe] Conventional Enclosed Thermal Current
- 3 A
- Short-circuit Current
- 1 kA
- Package Weight(Lbs)
- 45.0 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Contacts Composition4 C/O
[Ie] Rated Operational Current3 A at 120 V AC (on resistive load), 3 A at 240 V AC (on resistive load), 3 A at 30 V DC (on resistive load)
Carbon Footprint Of The Distribution Phase [A4]0.0058844896900531705, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.007550849435870834, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]12 kg CO2 eq., 11.972693032015062
Local Publishable Date2026-01-12
Stocking FlagY
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2403024EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier4
Function OptionStandard
Associated Fuse Rating6 A gG at 400 V coordination type 2 for power circuit
Average Impedance2 mOhm
Contacts Materialgold flashed fine silver
Contacts Usagehermetically sealed
Electrical Durability100000 cycles resistive IEC
Local Signallingwithout LED without lockable test button
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductHarmony Electromechanical Relays
Response Time20 ms
Series Name782H series
Shock Resistance10 gn
Status Ledwithout
Total Lifecycle Carbon Footprint13 kg CO2 eq.
Control Circuit Voltage120 V
Pep CodeENVPEP2403024EN
Pep Verification Date2024-06-09
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Unit1
Energy Consumption On Product Lifetime, In Kwh21.9
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; US
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; US
Width Nominal22.75 mm
Connections - Terminalsplug in
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -45-70 °C, -45-70 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 12.677466329901199
- Environmental Disclosure
- ENVPEP2403024EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2403024EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-60-85 °C, -60-85 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2403024EN
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2024-06-09
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- plug-in relay
Range Of ProductHarmony Electromechanical Relays
ETIM
- ETIM 8
- EC001437
ETIM 9EC001437
