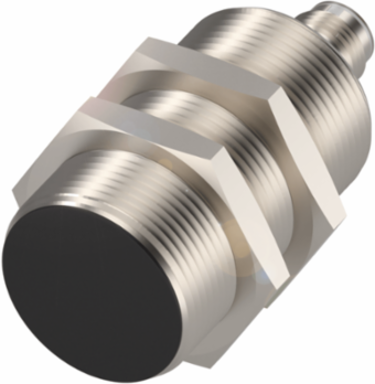

Balluff BIS M-400-045-401-07-S4 HF read/write heads (13.56 MHz) with integrated processor unit BIS M-400-045-401-07-S4
- MPN: BIS M-400-045-401-07-S4
- PPN: BAL-BIS015T
CAD
$927.74
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
BIS M uses the high frequency (HF) 13.56 MHz and supports the standard according to DIN ISO 15693. Read heads with an integrated processor unit can be connected directly to the higher-level control system via IO-Link, RS232, TCP/IP or via Serial Subnet 16 TM. The diverse configurations, dimensions, and variants with separate or integrated read heads allow you to meet most requirements.
Documentation & Downloads
Specifications
Key Specifications
| Product Group | HF (13.56 MHz) |
|---|---|
| Installation | metal-free (clear zone)on metalflush in metal |
| Supported data carrier types | DIN ISO 15693, DIN ISO 15693 (High Memory) |
| Housing material | Brass, Nickel-plated brass nuts |
| Process data IN | 10 bytes |
| Operating voltage Ub | 18-30 VDC Supports only LPS/Class 2 |
| IP rating | IP67 |
| Dimension | Ø 30 x 65.9 mm |
|---|---|
| Antenna type | round |
| Connection | Connector, M12x1-Male, 4-pin |
| Interface | IO-Link 1.1 |
| Process data OUT | 10 bytes |
| Ambient temperature | 0-70 °C |
| Approval/Conformity | CE, FCC Part 15, IC RSS-210, WEEE, cULus |
