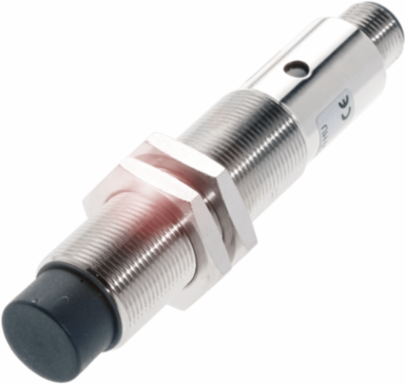

HF read/write heads and antennas (13.56 MHz) BIS M-302-003-S115

Documentation & Downloads

Balluff BIS M-302-003-S115 HF read/write heads and antennas (13.56 MHz) BIS M-302-003-S115

MPN: BIS M-302-003-S115
PPN: BAL-BIS0059

CAD

$682.97

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Compare

Description

BIS M uses the high frequency (HF) 13.56 MHz and supports the standard according to DIN ISO 15693 and 14443. Read/write heads are the link between the data carrier and the processor unit. BIS M read/write heads provide absolute data security. These are available in a wide variety of configurations, dimensions – for example, as round/rod antennas, which means they can meet varied requirements.

Documentation & Downloads

Specifications

Key Specifications

Product Group: HF (13.56 MHz)

Installation: metal-free (clear zone)

Supported data carrier types: DIN ISO 14443, DIN ISO 15693

Housing material: Brass, Nickel-plated brass nuts

IP rating: IP67

DimensionØ 18 x 92.5 mm

Antenna typeround

ConnectionMale, 8-pin

Ambient temperature0-70 °C

Approval/ConformityCE, FCC Part 15, IC RSS-210, cULus, WEEE
