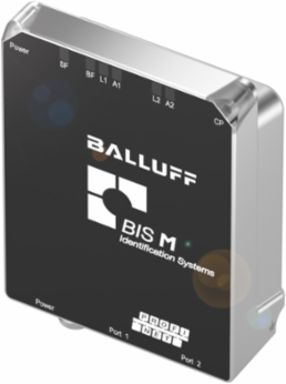

HF read/write heads (13.56 MHz) with integrated processor unit BIS M-4008-048-001-ST4

Documentation & Downloads

Balluff BIS M-4008-048-001-ST4 HF read/write heads (13.56 MHz) with integrated processor unit BIS M-4008-048-001-ST4

MPN: BIS M-4008-048-001-ST4
PPN: BAL-BIS0179

CAD

$1370.80

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Compare

Description

BIS M uses the high frequency (HF) 13.56 MHz and supports the standard according to DIN ISO 15693. Read heads with an integrated processor unit can be connected directly to the higher-level control system via IO-Link, RS232, TCP/IP or via Serial Subnet 16 TM. The diverse configurations, dimensions, and variants with separate or integrated read heads allow you to meet most requirements.

Documentation & Downloads

Specifications

Key Specifications

Product Group: HF (13.56 MHz)

Installation: metal-free (clear zone)on metalflush in metal

Supported data carrier types: DIN ISO 15693, DIN ISO 15693 (High Memory)

Housing material: Zinc, Die casting

Operating voltage Ub: 24 V DC LPS Class 2

IP rating: IP67

Dimension80 x 35 x 119 mm

Antenna typeround

Connection2x M12x1-Female, 4-pin, D-codedM12x1-Male, 4-pin, A-coded

InterfaceProfinet I/O (IRT);Profinet I/O (IRT)2-Port Switch

Ambient temperature0-70 °C

Approval/ConformityCE, WEEE
