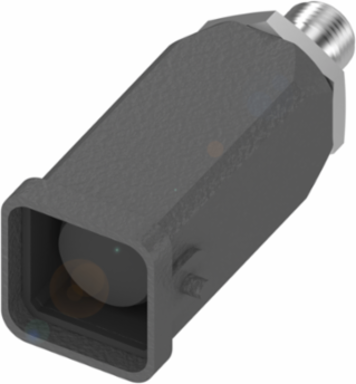

HF read/write heads (13.56 MHz) with integrated processor unit BIS M-404-045-401-07-S4-SA1

Documentation & Downloads

Balluff BIS M-404-045-401-07-S4-SA1 HF read/write heads (13.56 MHz) with integrated processor unit BIS M-404-045-401-07-S4-SA1

MPN: BIS M-404-045-401-07-S4-SA1
PPN: BAL-BIS018E

CAD

$1223.70

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Compare

Description

BIS M uses the high frequency (HF) 13.56 MHz and supports the standard according to DIN ISO 15693. Read heads with an integrated processor unit can be connected directly to the higher-level control system via IO-Link, RS232, TCP/IP or via Serial Subnet 16 TM. The diverse configurations, dimensions, and variants with separate or integrated read heads allow you to meet most requirements.

Documentation & Downloads

Specifications

Key Specifications

Product Group: HF (13.56 MHz)

Installation: metal-free (clear zone)on metalflush in metal

Supported data carrier types: DIN ISO 15693, DIN ISO 15693 (High Memory)

Housing material: Die castingNickel-plated brass, Nickel-plated brass nuts

Process data IN: 10 bytes

Operating voltage Ub: 18-30 VDC Supports only LPS/Class 2

IP rating: IP67

Dimension28 x 60 x 33.4 mm

Antenna typeround

ConnectionConnector, M12x1-Male, 4-pin

InterfaceIO-Link 1.1

Process data OUT10 bytes

Ambient temperature0-70 °C

Approval/ConformityCE, FCC Part 15, IC RSS-210, WEEE
