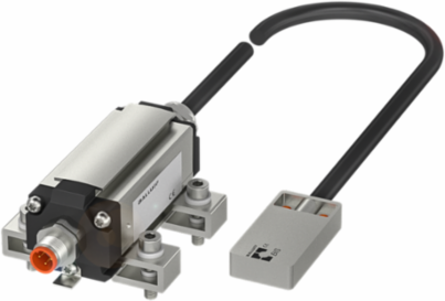

Balluff BIS M-402-045-007-07-S4 HF read/write heads (13.56 MHz) with integrated processor unit BIS M-402-045-007-07-S4

HF read/write heads (13.56 MHz) with integrated processor unit BIS M-402-045-007-07-S4
  • MPN: BIS M-402-045-007-07-S4
  • PPN: BAL-BIS0126

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1014.07/ EA

Description

BIS M uses the high frequency (HF) 13.56 MHz and supports the standard according to DIN ISO 15693. Read heads with an integrated processor unit can be connected directly to the higher-level control system via IO-Link, RS232, TCP/IP or via Serial Subnet 16 TM. The diverse configurations, dimensions, and variants with separate or integrated read heads allow you to meet most requirements.

Specifications

Specifications

Product Group
HF (13.56 MHz)
Installation
metal-free (clear zone)
Supported data carrier types
DIN ISO 14443, DIN ISO 15693
Housing material
ABS, GF16, Interface aluminum
Process data IN
10 bytes
Operating voltage Ub
18-30 VDC Supports only LPS/Class 2
IP rating
IP67
Dimension25 x 10 x 50 mm
Antenna typeRod
ConnectionConnector, M12x1-Male, 4-pin, 0.50 m, PU
InterfaceIO-Link 1.1
Process data OUT10 bytes
Ambient temperature0-70 °C
Approval/ConformityCE, cULus, WEEE
