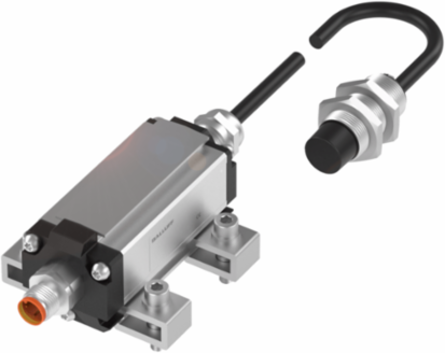

Balluff BIS M-402-072-002-07-S4 HF read/write heads (13.56 MHz) with integrated processor unit BIS M-402-072-002-07-S4

MPN: BIS M-402-072-002-07-S4
PPN: BAL-BIS0105

$1024.44

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

BIS M uses the high frequency (HF) 13.56 MHz and supports the standard according to DIN ISO 15693. Read heads with an integrated processor unit can be connected directly to the higher-level control system via IO-Link, RS232, TCP/IP or via Serial Subnet 16 TM. The diverse configurations, dimensions, and variants with separate or integrated read heads allow you to meet most requirements.

Documentation & Downloads

Specifications

Key Specifications

Product Group	HF (13.56 MHz)
Installation	metal-free (clear zone)
Supported data carrier types	DIN ISO 14443, DIN ISO 15693
Housing material	Brass, Interface aluminum
Process data IN	32 bytes
Operating voltage Ub	18-30 VDC Supports only LPS/Class 2
IP rating	IP67

Dimension	Ø 18 x 45.5 mm
Antenna type	round
Connection	Connector, M12x1-Male, 4-pin, 0.50 m, PU
Interface	IO-Link
Process data OUT	32 bytes
Ambient temperature	0-70 °C
Approval/Conformity	CE, cULus, WEEE
