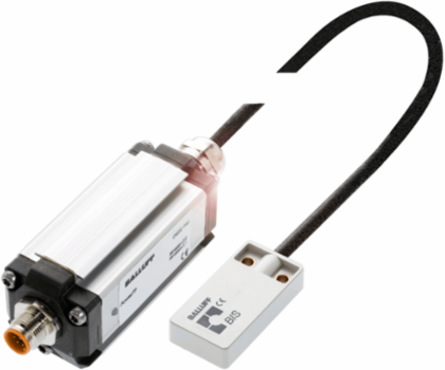

HF read/write heads (13.56 MHz) with integrated processor unit BIS M-402-072-004-07-S4

Documentation & Downloads

Balluff BIS M-402-072-004-07-S4 HF read/write heads (13.56 MHz) with integrated processor unit BIS M-402-072-004-07-S4

MPN: BIS M-402-072-004-07-S4
PPN: BAL-BIS0106

CAD

$1024.44

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Compare

Description

BIS M uses the high frequency (HF) 13.56 MHz and supports the standard according to DIN ISO 15693. Read heads with an integrated processor unit can be connected directly to the higher-level control system via IO-Link, RS232, TCP/IP or via Serial Subnet 16 TM. The diverse configurations, dimensions, and variants with separate or integrated read heads allow you to meet most requirements.

Documentation & Downloads

Specifications

Key Specifications

Product Group: HF (13.56 MHz)

Installation: metal-free (clear zone)

Supported data carrier types: DIN ISO 14443, DIN ISO 15693

Housing material: ABS, GF16, Interface aluminum

Process data IN: 32 bytes

Operating voltage Ub: 18-30 VDC Supports only LPS/Class 2

IP rating: IP67

Dimension25 x 10 x 50 mm

Antenna typeround

ConnectionConnector, M12x1-Male, 4-pin, 0.50 m, PU

InterfaceIO-Link

Process data OUT32 bytes

Ambient temperature0-70 °C

Approval/ConformityCE, cULus, WEEE
