LF read/write heads (125 kHz) with integrated processor unit BIS L-409-045-002-07-S4

Documentation & Downloads

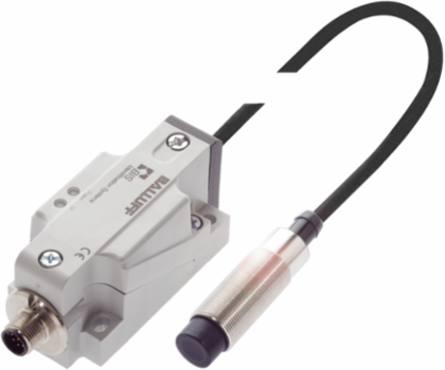

Balluff BIS L-409-045-002-07-S4 LF read/write heads (125 kHz) with integrated processor unit BIS L-409-045-002-07-S4

MPN: BIS L-409-045-002-07-S4
PPN: BAL-BIS00E0

CAD

$825.39

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Compare

Description

BIS L uses the low frequency (LF) 125 kHz and uses passive data carriers. The read heads with an integrated processor unit can be connected easily and directly to the higher-level control system via IO-Link, RS232/RS422 or with parallel signals. The diverse configurations, dimensions, and variants with separate or integrated read heads allow you to meet most requirements.

Documentation & Downloads

Specifications

Key Specifications

Product Group: LF (125 kHz)

Dimension: Ø 18 x 75 mm

Antenna type: round

Housing material: Brass, Interface PBT

Process data IN: 8 bytes

Operating voltage Ub: 18-30 VDC

IP rating: IP67

Principle of operationRead head

Installationmetal-free (clear zone)

ConnectionConnector, M12x1-Male, 4-pin, 0.50 m, PU

InterfaceIO-Link

Process data OUT8 bytes

Ambient temperature0-70 °C

Approval/ConformityCE, cULus, WEEE
