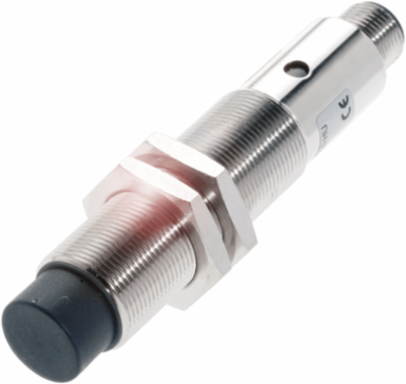

Balluff BIS M-302-001-S115 HF read/write heads and antennas (13.56 MHz) BIS M-302-001-S115

HF read/write heads and antennas (13.56 MHz) BIS M-302-001-S115
  • MPN: BIS M-302-001-S115
  • PPN: BAL-BIS0057

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$663.07/ EA

Description

BIS M uses the high frequency (HF) 13.56 MHz and supports the standard according to DIN ISO 15693 and 14443. Read/write heads are the link between the data carrier and the processor unit. BIS M read/write heads provide absolute data security. These are available in a wide variety of configurations, dimensions – for example, as round/rod antennas, which means they can meet varied requirements.

Specifications

Specifications

Product Group
HF (13.56 MHz)
Installation
metal-free (clear zone)
Supported data carrier types
DIN ISO 14443, DIN ISO 15693
Housing material
Brass, Nickel-plated brass nuts
IP rating
IP67
DimensionØ 18 x 92.5 mm
Antenna typeround
ConnectionMale, 8-pin
Ambient temperature0-70 °C
Approval/ConformityCE, FCC Part 15, IC RSS-210, cULus, WEEE
