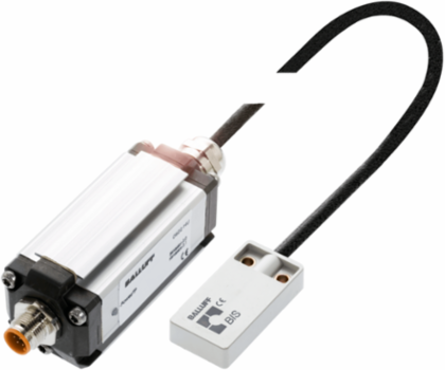

Balluff BIS M-305-003-S115 HF read/write heads and antennas (13.56 MHz) BIS M-305-003-S115
Balluff BIS M-305-003-S115 HF read/write heads and antennas (13.56 MHz) BIS M-305-003-S115
- MPN: BIS M-305-003-S115
- PPN: BAL-BIS00ZN
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$989.13/ EA
Description
BIS M uses the high frequency (HF) 13.56 MHz and supports the standard according to DIN ISO 15693 and 14443. Read/write heads are the link between the data carrier and the processor unit. BIS M read/write heads provide absolute data security. These are available in a wide variety of configurations, dimensions – for example, as round/rod antennas, which means they can meet varied requirements.
Specifications
Specifications
- Product Group
- HF (13.56 MHz)
- Installation
- metal-free (clear zone)
- Connection
- Male, 8-pin, 0.50 m, PU
- Ambient temperature
- 0-70 °C
- Approval/Conformity
- CE, cULus, FCC, IC, WEEE
Dimension25 x 10 x 50 mm
Antenna typeround
Housing materialABS, GF16, Interface aluminum
IP ratingIP67
