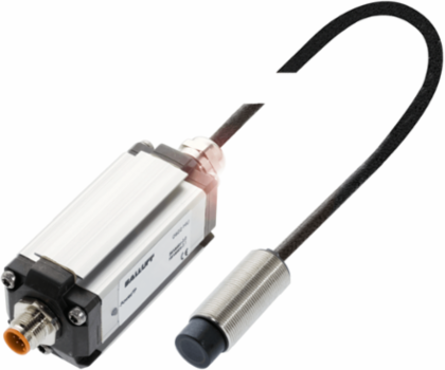

Balluff BIS M-307-001-S115 HF read/write heads and antennas (13.56 MHz) BIS M-307-001-S115
- MPN: BIS M-307-001-S115
- PPN: BAL-BIS00P2
CAD
$1018.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
BIS M uses the high frequency (HF) 13.56 MHz and supports the standard according to DIN ISO 15693 and 14443. Read/write heads are the link between the data carrier and the processor unit. BIS M read/write heads provide absolute data security. These are available in a wide variety of configurations, dimensions – for example, as round/rod antennas, which means they can meet varied requirements.
Documentation & Downloads
Specifications
Key Specifications
- Product Group
- HF (13.56 MHz)
- Installation
- metal-free (clear zone)
- Supported data carrier types
- DIN ISO 14443, DIN ISO 15693
- Housing material
- Brass, Interface aluminum
- IP rating
- IP67
DimensionØ 18 x 46.5 mm
Antenna typeround
ConnectionMale, 8-pin, 0.50 m, PU
Ambient temperature0-70 °C
Approval/ConformityCE, cULus, FCC, IC, WEEE
