Side-Mount Filter Fan 115V 21 CFM 4.42 x 4.44 x 3.65 Inch Black
nVent Hoffman

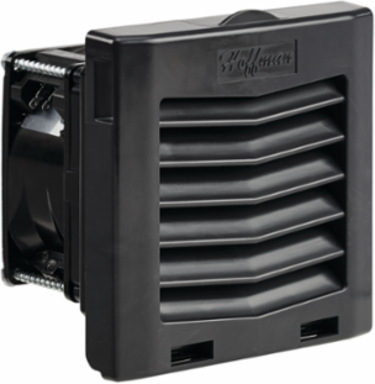

nVent Hoffman HF0416413 Side-Mount Filter Fan 115V 21 CFM 4.42 x 4.44 x 3.65 Inch Black

  • MPN: HF0416413
  • UPC: 783510342678
  • PPN: HOF-HF0416413
  • UNSPSC: 40101604

CAD

$229.38

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

HF Side-Mount Filter Fans provide fresh air cooling, ease of installation and tool-less maintenance. This HF04 Side-Mount Filter Fan, HF0416413 item is rated 115V 21CFM colored Black.

Features

  • Click-Fit design quickly installs into enclosure wall; no tools or screws required
  • Opens with the flick of a finger for easy filter replacement
  • Enclosure side wall mounting
  • Reverse airflow option on HF13 models available to push/pull air through higher static pressure
  • Standard rope gasket provides proper seal to the enclosure
  • Similar cut-out sizes as other filter fan manufacturers
  • Terminal block connections
  • Optional thermostat available to save energy and extend service life
  • Hinged grille remains attached after opening
  • Size rage from 4 inch (102 mm) to 13 inch (325 mm)
  • Free air flow from 21 CFM (36 m3/hr.) to 484 CFM (822 m3/hr.)
  • Service life hours from 40,000 to 100,000 hours
  • Operating temperature range of -4 F/-20 C to 149 F/65 C

Documentation & Downloads

Specifications

Key Specifications

BABA
Contact Manufacturer
Nominal Voltage
115
Width (W)
113
Max Current
0.1
Material
Plastic
Color Code
RAL 9011
Size
4.42 x 4.44 x 3.65 in
Voltage Rating
115 VAC
Housing Material
Non-metallic
Airflow36
Height (H)112
Depth (D)93
Operating Temperature-10
ColorGraphite Black
Weight1.6
Flow Rate21 CFM
Amperage Rating0.1 A
FinishBlack
