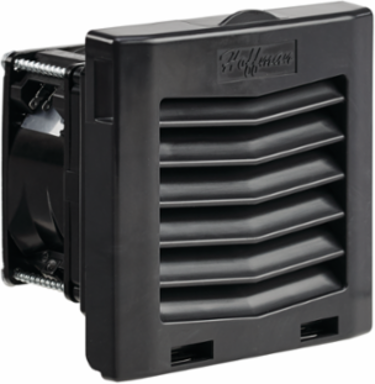

nVent Hoffman HF0424413 Side-Mount Filter Fan 24V 21CFM Black, 4.42 x 4.44 x 3.15 Inch

MPN: HF0424413
UPC: 783510342685
PPN: HOF-HF0424413
UNSPSC: 40101604

$248.77

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

HF Side-Mount Filter Fans provide fresh air cooling, ease of installation and tool-less maintenance. This HF04 Side-Mount Filter Fan, HF0424413 item is rated 24V 21CFM colored Black.

Features

Click-Fit design quickly installs into enclosure wall; no tools or screws required
Opens with the flick of a finger for easy filter replacement
Enclosure side wall mounting
Reverse airflow option on HF13 models available to push/pull air through higher static pressure
Standard rope gasket provides proper seal to the enclosure
Similar cut-out sizes as other filter fan manufacturers
Terminal block connections
Optional thermostat available to save energy and extend service life
Hinged grille remains attached after opening
Size rage from 4 inch (102 mm) to 13 inch (325 mm)
Free air flow from 21 CFM (36 m3/hr.) to 484 CFM (822 m3/hr.)
Service life hours from 40,000 to 100,000 hours
Operating temperature range of -4 F/-20 C to 149 F/65 C

Documentation & Downloads

Specifications

Additional

Voltage	24 VDC
Flow Rate	21 CFM (36 m3/hr.)
Height (H)	112 mm
Depth (D)	80 mm
Material	Plastic, Non-metallic housing, UV-resistant
Operating Temperature	-20 to 65 °C (-4 to 149 °F)
Max Current	0.3 A
Sound Pressure	34-36 dBA at 50/60 Hz
Cutout Dimensions (H x W)	3.62 x 3.62 in (92 x 92 mm)

Amperage Rating	0.14 A
Size	4.42 x 4.44 x 3.15 in
Width (W)	113 mm
Weight	1.1 lb (0.50 kg)
Color	Graphite Black (RAL 9011)
Finish	Black
Fan RPM	3250 RPM
Power Consumption	3.4 Watts max
Compliance	UL/cUL Listed, CE, EAC
