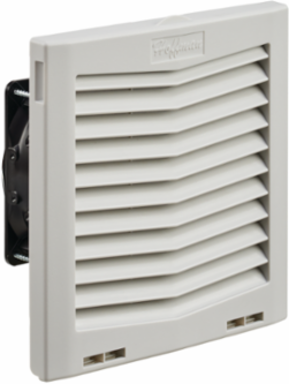

nVent Hoffman HF0926514 HF09 Side-Mount Filter Fan, 230V 33CFM, Lt Gray
nVent Hoffman HF0926514 HF09 Side-Mount Filter Fan, 230V 33CFM, Lt Gray
- MPN: HF0926514
- UPC: 783510342371
- PPN: HOF-HF0926514
- UNSPSC: 40101604
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$487.85/ EA
Description
HF Side-Mount Filter Fans provide fresh air cooling, ease of installation and tool-less maintenance. This HF09 Side-Mount Filter Fan, HF0926514 item is rated 230V 33CFM colored Lt Gray.
Features
- Click-Fit design quickly installs into enclosure wall; no tools or screws required
- Opens with the flick of a finger for easy filter replacement
- Enclosure side wall mounting
- Reverse airflow option on HF13 models available to push/pull air through higher static pressure
- Standard rope gasket provides proper seal to the enclosure
- Similar cut-out sizes as other filter fan manufacturers
- Terminal block connections
- Optional thermostat available to save energy and extend service life
- Hinged grille remains attached after opening
- Size rage from 4 inch (102 mm) to 13 inch (325 mm)
- Free air flow from 21 CFM (36 m3/hr.) to 484 CFM (822 m3/hr.)
- Service life hours from 40,000 to 100,000 hours
- Operating temperature range of -4 F/-20 C to 149 F/65 C
Specifications
Specifications
- BABA
- Contact Manufacturer
- Nominal Voltage
- 230
- Width (W)
- 209
- Max Current
- 0.12
- Material
- Plastic
- Color Code
- RAL 7035
- Size
- 8.19 x 8.21 x 4.15 in
- Voltage Rating
- 230 VAC
- Ambient Temperature
- 14 to 131 deg F
- Finish
- Lt Gray
Airflow56
Height (H)208
Depth (D)105
Operating Temperature-10
ColorLight Gray
Weight1
Flow Rate33 CFM
Amperage Rating0.12/0.10 A
Housing MaterialNon-metallic
