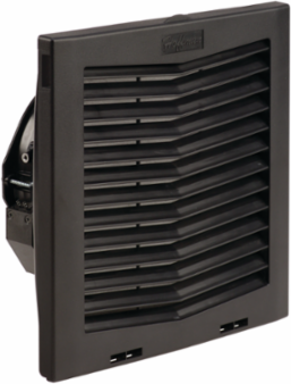

nVent Hoffman HF1016413 10.13 x 10.14 x 4.68 Inch Side-Mount Filter Fan, 115V, 159 CFM, Black
- MPN: HF1016413
- UPC: 783510342869
- PPN: HOF-HF1016413
- UNSPSC: 40101604
CAD
$526.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
HF Side-Mount Filter Fans provide fresh air cooling, ease of installation and tool-less maintenance. This HF10 Side-Mount Filter Fan, HF1016413 item is rated 115V 159CFM colored Black.
Features
- Click-Fit design quickly installs into enclosure wall; no tools or screws required
- Opens with the flick of a finger for easy filter replacement
- Enclosure side wall mounting
- Reverse airflow option on HF13 models available to push/pull air through higher static pressure
- Standard rope gasket provides proper seal to the enclosure
- Similar cut-out sizes as other filter fan manufacturers
- Terminal block connections
- Optional thermostat available to save energy and extend service life
- Hinged grille remains attached after opening
- Size rage from 4 inch (102 mm) to 13 inch (325 mm)
- Free air flow from 21 CFM (36 m3/hr.) to 484 CFM (822 m3/hr.)
- Service life hours from 40,000 to 100,000 hours
- Operating temperature range of -4 F/-20 C to 149 F/65 C
Documentation & Downloads
Specifications
Additional
- Voltage
- 115 VAC
- Flow Rate
- 159/270 CFM
- Size
- 10.13 x 10.14 x 4.68 in
- Material
- Plastic, Non-metallic
- Color
- Graphite Black (RAL 9011)
- Height (H)
- 257 mm
- Compliance
- UL Listed, CE, EAC, Type 12 standard, IP54/IP55 options
- Power Connection
- Terminal Block
- Sound Pressure
- 53/56 dBA at 50/60 Hz
Amperage Rating0.38/0.36 A
Operating Temperature Range14 to 131 deg F
Weight4.3 lb
FinishBlack
Width (W)258 mm
Depth (D)119 mm
Mounting TypeSide wall mount
Fan RPM2700/3200 rpm
Cutout Dimensions8.78 x 8.78 in / 223 x 223 mm
