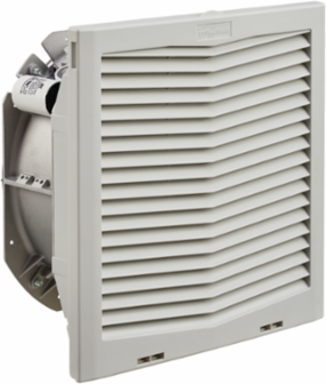

Nvent Hoffman HF1316424R Side-Mount Filter Fan 115V 484CFM Light Gray 12.8 x 12.82 x 6.31 Inch
Nvent Hoffman HF1316424R Side-Mount Filter Fan 115V 484CFM Light Gray 12.8 x 12.82 x 6.31 Inch
- MPN: HF1316424R
- UPC: 783510342548
- PPN: HOF-HF1316424R
- UNSPSC: 40101604
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$766.77/ EA
Description
HF Side-Mount Filter Fans provide fresh air cooling, ease of installation and tool-less maintenance. This HF13 Side-Mount Filter Fan, HF1316424R item is rated 115V 484CFM colored Lt Gray, Reverse Flow.
Features
- Click-Fit design quickly installs into enclosure wall; no tools or screws required
- Opens with the flick of a finger for easy filter replacement
- Enclosure side wall mounting
- Reverse airflow option on HF13 models available to push/pull air through higher static pressure
- Standard rope gasket provides proper seal to the enclosure
- Similar cut-out sizes as other filter fan manufacturers
- Terminal block connections
- Optional thermostat available to save energy and extend service life
- Hinged grille remains attached after opening
- Size rage from 4 inch (102 mm) to 13 inch (325 mm)
- Free air flow from 21 CFM (36 m3/hr.) to 484 CFM (822 m3/hr.)
- Service life hours from 40,000 to 100,000 hours
- Operating temperature range of -4 F/-20 C to 149 F/65 C
Specifications
Specifications
- BABA
- Contact Manufacturer
- Nominal Voltage
- 115
- Width (W)
- 326
- Max Current
- 1.5
- Material
- Plastic
- Color Code
- RAL 7035
- Size
- 12.8 x 12.82 x 6.31 in
- Voltage Rating
- 115 VAC Rvrs
- Ambient Temperature
- 14 to 131 deg F
- Finish
- Lt Gray
Airflow822
Height (H)325
Depth (D)160
Operating Temperature-10
ColorLight Gray
Weight11.5
Flow Rate484 CFM
Amperage Rating1.05/1.50 A
Housing MaterialNon-metallic
