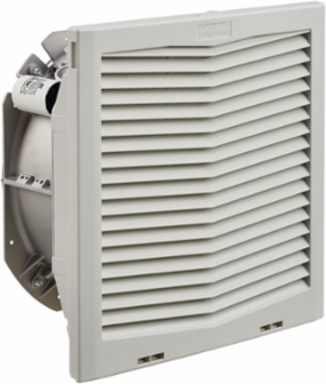

nVent Hoffman HF1326414 Side-Mount Filter Fan 230V 395CFM Light Gray, 12.8 x 12.82 x 6.36 Inch
- MPN: HF1326414
- UPC: 783510342128
- PPN: HOF-HF1326414
- UNSPSC: 40101604
CAD
$663.38
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
HF Side-Mount Filter Fans provide fresh air cooling, ease of installation and tool-less maintenance. This HF13 Side-Mount Filter Fan, HF1326414 item is rated 230V 395CFM colored Lt Gray.
Features
- Click-Fit design quickly installs into enclosure wall; no tools or screws required
- Opens with the flick of a finger for easy filter replacement
- Enclosure side wall mounting
- Reverse airflow option on HF13 models available to push/pull air through higher static pressure
- Standard rope gasket provides proper seal to the enclosure
- Similar cut-out sizes as other filter fan manufacturers
- Terminal block connections
- Optional thermostat available to save energy and extend service life
- Hinged grille remains attached after opening
- Size rage from 4 inch (102 mm) to 13 inch (325 mm)
- Free air flow from 21 CFM (36 m3/hr.) to 484 CFM (822 m3/hr.)
- Service life hours from 40,000 to 100,000 hours
- Operating temperature range of -4 F/-20 C to 149 F/65 C
Documentation & Downloads
Specifications
Additional
| Voltage | 230 VAC |
|---|---|
| Airflow | 395 CFM |
| Weight | 9.3 lb |
| Color | Light Gray |
| Amperage Rating | 0.34/0.37 A |
|---|---|
| Size | 12.8 x 12.82 x 6.36 in |
| Operating Temperature Range | 14 to 131 deg F |
| Material | Plastic, Non-metallic |
