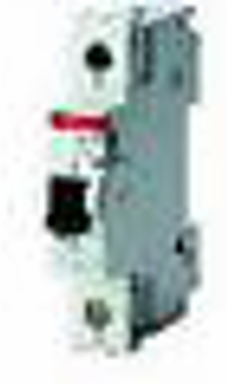

ABB S282UC-K16FS High Performance 2 Pole MCB, 16 Amps, Interrupt Rating 6 kA, DIN Rail Mounted
- MPN: S282UC-K16FS
- UPC: 804325565127
- PPN: ABB-S282UC-K16FS
CAD
$386.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Miniature Circuit Breaker, Supplemental Protector, Rated Current 16 Amps, 2 Pole, Interrupt Rating 6 kA (IEC, CSA 22.2 No. 235) and 10 kA UL 1077, Thermal Magnetic Trip Curve K, Electromechanic and/or Thermal Tripping Mechanism for Short Circuit Protection, Voltage up to 250/500 VDC, DIN Rail Mounted (FS Series), Finger Safe and Multi-Function Terminals
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121603 Miniature circuit breakers
- Brand Name
- ABB
- Special Features
- DIN Rail Mounting, Finger Safe and Multi-Function Terminals
- Standard
- UL 1077, CSA 22.2 No. 235
- Amperage Rating
- 16 Amps
- Trip Type
- K
- Number Of Poles
- 2
- Length
- 68 mm
- Height
- 90 mm
IGCC4897 Miniature circuit breakers
TypeHigh Performance MCB Provides Compact Supplementary, Energy Limiting, Circuit Protection
ApplicationDesigned for Allowing Higher In-Rush Current During System Start Up; Example: Motors, Transformers
Voltage Rating250/500 VDC
Frequency Rating50/60 Hertz
Interrupt Rating6 kA
Auxiliary ContactsYes
Width35 mm
Operating Temperature-25 to +55 Degrees Celcius
Packaging
- Inner Quantity
- 1
- Outer Dimensions (inches)
- 4.33x3.78x3.23
Outer Quantity3
Weight Uom1.88 lbs. Each
