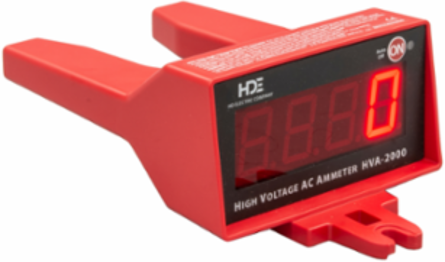

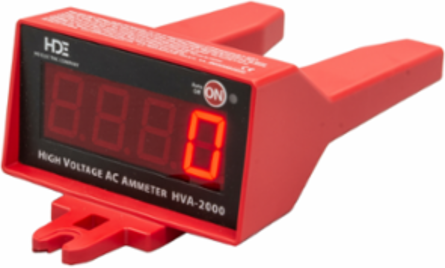

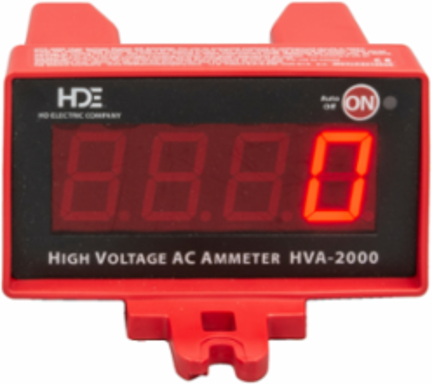

Greenlee HVA-2000 High Voltage Ammeter 2000A, 0-500kV, Measures 1-2000A, Compact Design
- MPN: HVA-2000
- UPC: 783310628309
- PPN: GRN-HVA-2000
- UNSPSC: 41113637
CAD
$3542.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
High Voltage Ammeter 2000A, 0-500kV, Measures 1-2000A, Compact Design
Features
- Measures AC current from 1 to 2000 Amps on system voltages up to 500kV line-to-ground
- Stores the last 4 readings
- Dual measurement modes, peak hold and real time
- Takes spot-load checks with ease
- Verifies phases are balanced
- Versatile for overhead and underground applications
- Compact, lightweight design
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Type
- Ammeter
- Voltage Rating
- 0 - 500kV line-to-ground
- Accuracy
- 50-60Hz - 1–10A – 1% +/-2 counts, 11–100A – 1% +/-3 counts, 101–500A – 1% +/-6 counts, 501–2000A – 1% +/-8. 252-49Hz and 61-500Hz - 1–10A – 2% +/-3 counts, 11–100A – 2% +/-4 counts, 101–500A – 2% +/-6 counts, 501–2000A – 2% +/-8 counts
- Operating Temperature
- -20°F to +140°F (-29°C to +60°C)
- Frequency Rating
- 25 - 500Hz
Sub BrandHDE
ModelHVA-2000
Amperage Rating1 -2000A
DisplayLED display
Dimensions4”H x 6.6”W x 11.5”L

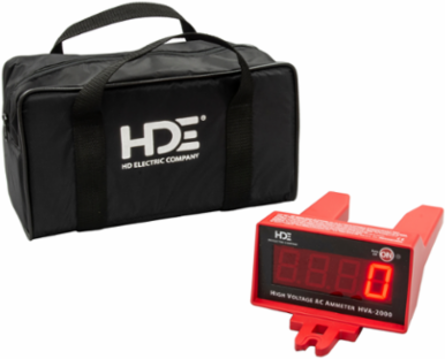

IncludedHVA-2000 Ammeter, B-5 Bag
