Klein Tools CL220VP Electrical Test Kit with 400 Amp Auto-Ranging Clamp Meter and Non-Contact Voltage Tester
- MPN: CL220VP
- UPC: 092644694332
- PPN: KLT-CL220VP
- UNSPSC: 41113654
CAD
$165.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

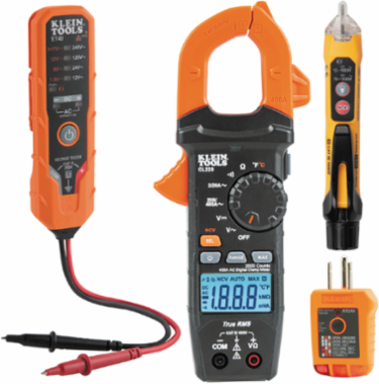

The CL220VP Premium Meter Electrical Test Kit from Klein Tools is designed with optimum reliability and safety in mind. Kit comes with 1 clamp meter and 3 testers for a variety of applications and all stored within a convenient padded pouch. The CL220 is an auto-ranging 400 Amp clamp meter that measures AC current, AC/DC voltage, and temperature. The NCVT3P is a dual range non-contact tester with an integrated flashlight for a broad variety of voltage applications from 12 to 1000V AC or 70 to 1000V AC. Test AC and DC voltage at four commonly used ranges with the ET40 Voltage Tester. The RT210 Receptacle Tester detects common wiring problems for Standard and GFCI AC electrical outlets.
Features

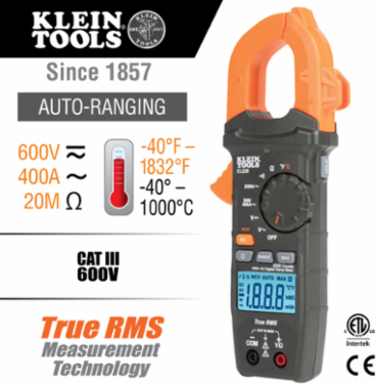

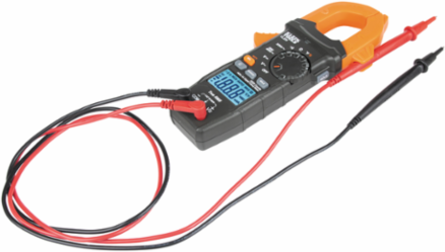

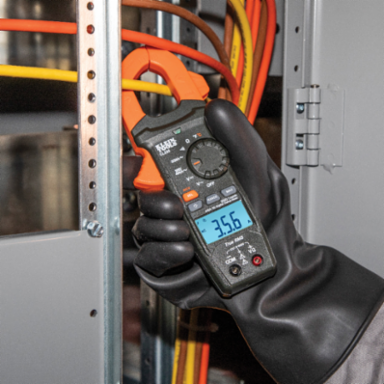

- CL220 Clamp Meter measures AC current and AC/DC voltage, resistance, and continuity via test leads, and temperature with thermocouple
- Auto-ranging TRMS meter has a backlit LCD on clamp to provide better viewing in low light and is CAT III 600V, Class 2 Double Insulated

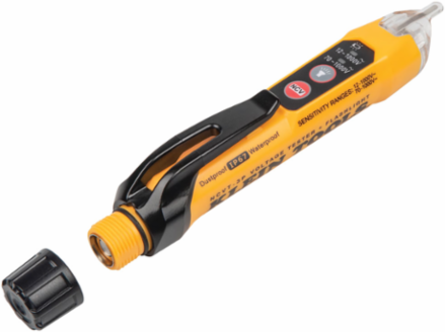

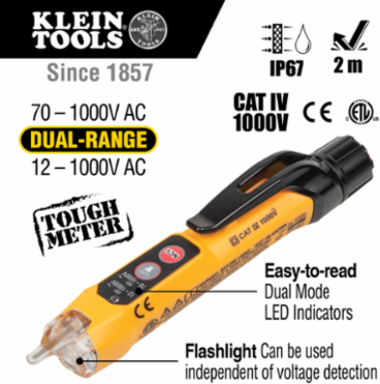

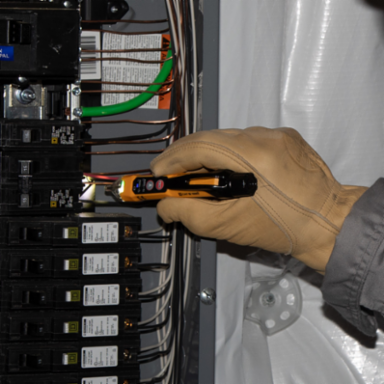

- NCVT3P has dual-range capabilities to detect from 12 to 1000V AC or 70 to 1000V AC for a broad variety of low-voltage or standard voltage applications
- Bright flashlight illuminates work area and may be used independent of NCVT-3P voltage detection function

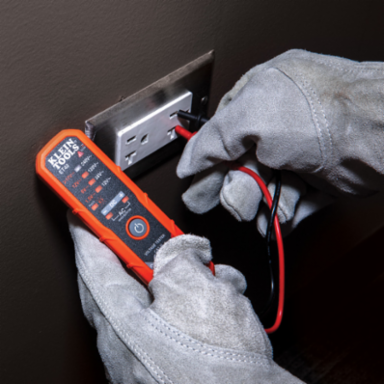

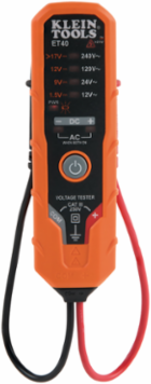

- ET40 tests AC voltages from 12V to 240V and DC voltages from 1.5V to >17V to 24V at four useful levels aligned with commonly used residential voltages
- ET40 also has built-in test lead holders spaced for testing tamper-resistant US-style outlets and convenient for storage

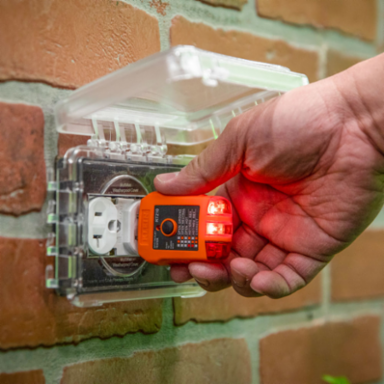

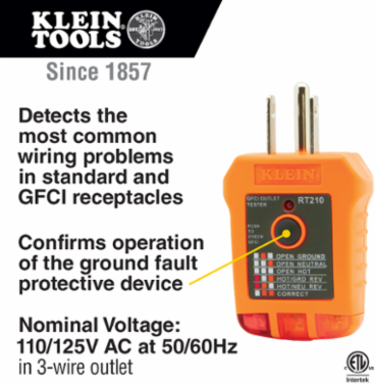

- RT210 detects common wiring problems in standard and GFCI receptacles: open ground, reverse polarity, open hot, open neutral, and hot/ground reversed
- CL220: Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology for Accuracy; NCVT; Added Temperature
Documentation & Downloads
Specifications
Key Specifications
- Functions
- Clamp Meter - TRMS, AC Current, NCVT, AC/DC Voltage, Resistance, Continuity and Temperature
- Pollution Degree
- CL220 - 2
- Application
- Testing and Measuring AC/DC Voltage, Resistance, Continuity, Temperature, Non-contact Voltage Detection, and Determining Wiring Conditions in Outlets
- Material
- ABS/Electronics
- Display
- CL220 - 2000 Count Backlit LCD
- Voltage
- CL220 - 600 V AC/DC; NCVT3P - Range 1 - 12 -1000V AC; Range 2 - 70 - 1000V AC; ET40 - AC Level Indicators - 12V, 24V, 120V, 240V and DC Indicators - 1.5V, 9V, 12V, >17-24V; RT310 - 120V AC in 3-Wire Grounded Electrical Outlet
- Overall Width (cm)
- 8.9
- Overall Height (cm)
- 3.8
- Weight (oz)
- 11
- Overall Height (Inch)
- 1.5
- Weight (g)
- 312
- Width
- 3.5000 in
- Weight
- 0.6100 lbs
StandardCL220: CATIII 600V, Class 2, Double Insulation Safety Rating, CE and UKCA Certified
TypeElectrical Test Kit
Drop Protection6.6' (2 m)
BatteriesCL220 - 3 x AAA; NCVT3P - 2 x AAA; ET40 - 2 x AAA
IncludedCL220 Digital Clamp Meter with Test Leads; NCVT3P Dual Range Non-Contact Voltage Tester with Flashlight; ET40 Electronic AC/DC Voltage Tester; RT210 GFCI Receptacle Tester; Carrying Case; Instructions; and All Required Batteries
Overall Length (cm)21.5
Overall Width (Inch)3.5
Overall Length (Inch)8.45
Jaw Size (Inch)1.6
Jaw Size (cm)4.1
Height1.5000 in
Depth8.4000 in
