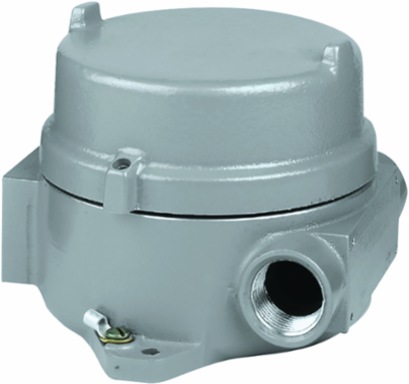

Killark HKB-BC HK Series Cast Aluminum Instrument Enclosure, 6.5 In x 6.125 In x 4.75 In, Explosion Proof, Type 4 IP66
- MPN: HKB-BC
- UPC: 783936295367
- PPN: HBL-HKB-BC
- UNSPSC: 39121314
CAD
$552.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
HK Series, 3-1/2 ID RD Body 3" DP & Flat Cover Cenelec, Cl I, Bcd, Ex D, Iic UL/CSA/FM, ATEX IECEx, Cast Aluminum, Type 4 IP66, Instrument Enclosure
Features
- Compact round body instrument enclosures with threaded blank screw covers provide easy access to interior.
- High strength, lighter weight, corrosion resistant copper free cast aluminum construction.
- Cover o-ring, Nitrile (BUNA-N) material, supplied standard supplied standard for a Type 4X rating.
- Cast mounting lugs are standard on all boxes.
- Internal ground screw supplied on all boxes.
- Electrostatically applied gray powder epoxy/polyester finish on exterior of box and covers.
- Offset feed-thru conduit openings (3/4” NPT) for maximum use of interior volume.
- Interior "X”-configuration mounting pad for instrument/device cast into the bottom of the box provided for flexibility.
- Covers have shrouded tamper resistant set screws as standard.
- Enclosures are explosion proof, dust/ignition proof, weather proof, and tamper resistant. HK Series boxes are cast from a copper-free aluminum alloy. Neoprene O-rings are provided with HK boxes to assure water resistance in NEMA 4/IP66 conditions. HKB box
Specifications
Key Specifications
- Country of Origin
- United States
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups A(suffix GA) B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Application
- Instrumentation housed in HK Series enclosures typically used to measure, detect, monitor, transmit, and control industrial processes and systems. HK Series enclosures are suitable for a broad range of applications, meeting both domestic and international
- Length
- 6.5 in
- Special Features
- Enclosures are explosion proof, dust/ignition proof, weather proof, and tamper resistant. HK Series boxes are cast from a copper-free aluminum alloy. Neoprene O-rings are provided with HK boxes to assure water resistance in NEMA 4/IP66 conditions. HKB box
- Width
- 6.125 in
- Cover Type
- Threaded
- Class Code
- D25
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11716
- UL File Number
- E83696
- Series
- HK Series
- BOX SIZE
- (in)
- Master Pack Description
- Each
Dimensions6.5 in x 6.125 in x 4.75 in
Height4.75 in
ColorGray
Size6.5 in x 6.125 in x 4.75 in
TypeEnclosure & Blank Cover
Engineering Drawing 1 Display TextHKB-BC/HKSB-BC - Engineering Drawing
ARRA CompliantContact Manufacturer
Description - InvoiceHKB BOX W/HFC COVER (CENELEC)
Harmonization Code7616995190
Lead Time15 wk
Order Multiple1 EA
Sub Class CodeD25D252
Gross Weight with Packaging3.06
MaterialCopper-free aluminum
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936295367
NAICS Code3359326101
Certifications
- EU RoHS Indicator
- Contact Manufacturer
