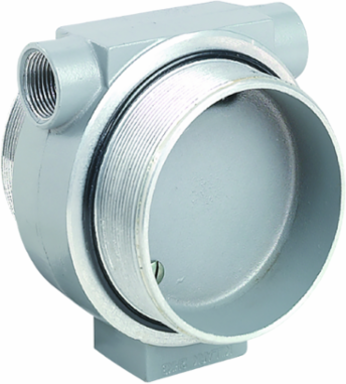

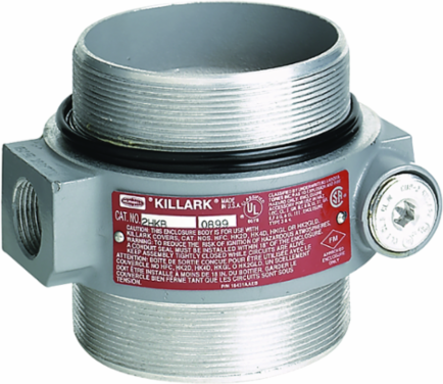

Killark 2HKB HK Series 3-1/2 Inch Internal Diameter Double Port Cast Aluminum Enclosure, 6.63 x 6 x 4.38 Inch, Type 4
Killark 2HKB HK Series 3-1/2 Inch Internal Diameter Double Port Cast Aluminum Enclosure, 6.63 x 6 x 4.38 Inch, Type 4
- MPN: 2HKB
- UPC: 783936295466
- PPN: HBL-2HKB
- UNSPSC: 39121314
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$433.31/ EA
Description
HK Series, 3-1/2" Internal Diameter Round Body Double Port, Class I, II, III, BCDEFG, UL/CSA/FM, Cast Aluminum, Type 4, Instrument Enclosure
Features
- Compact round body instrument enclosure, double cover design for use with threaded screw covers to provide easy access to interior.
- The enclosure has two separate chambers for isolation between power and instrument.
- High strength, lighter weight, corrosion resistant copper free cast aluminum construction.
- Available with a blank or lens cover, flat or domed.
- Cover o-ring, Nitrile (BUNA-N) material, supplied standard for a Type 4X rating.
- Cast mounting lugs are standard on all boxes.
- Internal ground screw supplied on all boxes.
- Electrostatically applied gray powder epoxy/polyester finish on exterior of box.
- Box has offset feed-thru conduit openings (3/4” NPT ) on power side and one (3/4” NPT) on bottom instrument side.
- Enclosures are explosion proof, dust/ignition proof, weather proof, and tamper resistant. HK Series boxes covers are cast from a copper-free aluminum alloy. Neoprene O-rings are provided with HK boxes to assure water resistance in NEMA 4/IP66 conditions.
Specifications
Specifications
- Country of Origin
- United States
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups A(suffix GA) B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Application
- Instrumentation housed in HK Series enclosures typically used to measure, detect, monitor, transmit, and control industrial processes and systems. HK Series enclosures are suitable for a broad range of applications, meeting both domestic and international
- Length
- 6.63 in
- Special Features
- Enclosures are explosion proof, dust/ignition proof, weather proof, and tamper resistant. HK Series boxes covers are cast from a copper-free aluminum alloy. Neoprene O-rings are provided with HK boxes to assure water resistance in NEMA 4/IP66 conditions.
- Width
- 6 in
- Cover Type
- Threaded
- Class Code
- D25
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11716
- UL File Number
- E83696
- Series
- HK Series
- BOX SIZE
- 6.250x26.250x7.000 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936295466
- Master Pack Description
- Each
Dimensions6.63 in x 6 in x 4.38 in
Height4.38 in
ColorGray
Size6.63 in x 6 in x 4.38 in
TypeEnclosure Only
Engineering Drawing 1 Display Text2HKB Engineering Drawing
ARRA CompliantContact Manufacturer
Description - InvoiceENCL, DOUBLE CVR AL
Harmonization Code7616995190
Lead Time15 wk
Order Multiple1 EA
Sub Class CodeD25D252
Gross Weight with Packaging2.22
MaterialCopper-free aluminum
Base Unit of MeasureEA
Carton - Gross Weight per Pack11.100 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
Certifications
- EU RoHS Indicator
- Contact Manufacturer
