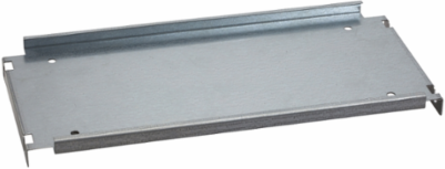

Schneider Electric NSYBANPLA54 Horizontal Support Plate for Thalassa PLA Enclosure, 458 mm x 340 mm, Galvanised Steel, 50 kg Max Load
- MPN: NSYBANPLA54
- PPN: SCH-NSYBANPLA54
CAD
$170.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Designed for versatility and strength, this horizontal support plate is an essential installation accessory for the Thalassa PLA enclosure range. Constructed from durable galvanised steel, it can support a maximum load of 50 kg, making it ideal for various applications. The adjustable height feature allows for precise installation every 50 mm, ensuring compatibility with vertical uprights and enabling the setup of multiple support plates. With a compact design measuring 458 mm in width and 340 mm in depth, this support plate is a reliable choice for enhancing the structural integrity of your enclosure system.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain
- Width
- 18.03 in
Height0.71 in
Depth340 mm
Complementary Attributes
- Maximum Load
- 50 kg
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Enclosure Nominal Dimensions
- -, -
- Local Publishable Date
- 2026-04-18
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1916
- China Rohs In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Adjustment
- adjustable in height every 50 mm uprights
- Device Composition
- fixing elements1 plate
- Mounting Support
- vertical uprights, for installation of one or several support plates
- Product Or Component Type
- support
- Returnability
- No
- Pep Code
- ENVPEP1109021EN
- Height Useful
- 18 mm
- Width Real
- 458 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 7326190080
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Applicationmulti-purpose
Materialgalvanised steel
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
RangePanelSeT
Sustainable PackagingNo
Height Nominal18 mm
Width Nominal458 mm
Accessory / Separate Part Categoryinstallation accessory
Package Weight(Lbs)100.0 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP1109021EN
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP1109021EN
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- support
ETIM
- ETIM 8
- EC000213
ETIM 9EC000213
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
