Leviton

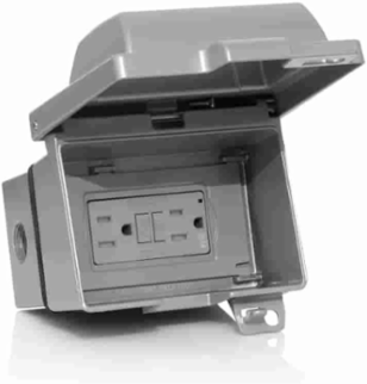

Leviton IUM1H-KBG 1-Gang Weatherproof Receptacle Kit, Aluminum, 15A, 125V, Tamper-Resistant

1-Gang Weatherproof Receptacle Kit, Aluminum, 15A, 125V, Tamper-Resistant
1-Gang Weatherproof Receptacle Kit, Aluminum, 15A, 125V, Tamper-Resistant
  • MPN: IUM1H-KBG
  • UPC: 078477404331
  • PPN: LEV-IUM1H-KBG

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$94.68/ EA

Description

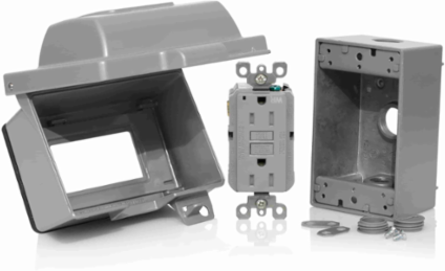

Weatherproof Kit Assembly Consisting of One Self-Test Tamper-Resistant ; Weather-Resistant Slim GFCI Receptacle (GFWT1-0GY); 15 A-125V Feed-Through, One Horizontal Outdoor WIU Coverplate with Self-Closing Cover (IUM1H-0GY), and One Aluminum Box (1GM53)

Features

  • Complies with the National Electric Code® (2017) Section 406.9 for weatherproof enclosures in damp and wet locations.
  • Ruggedly constructed to seal out moisture, dust, debris, and insects, while providing easy access to receptacles and switches
  • Ideal for outdoor power, landscape, accent and holiday lighting

Specifications

Standards and Certifications

ANSI
C-73
CSA-C22.2 No. 144.1-06
File LR-57811
MIL-SPEC
A-A-55459-SB
UL 943
File E48380
CSA C22.2 No. 42Yes
Fed Spec WC-596Yes
NOMYes
UL498Yes

Material Specifications

Body Material
Polycarbonate
Grounding Screw
Stainless Steel
Tamper Resistant
Yes
Face MaterialPolypropylene
Line ContactsBrass Double-Wipe .031 Thick
Terminal ScrewsStainless Steel

Cover Specifications

Color
Gray
Material
Aluminum
Standards and Certifications
UL/CSA
Warranty
2-Year Limited
Gang1
OrientationHorizontal
TypeExtra-Duty

Mechanical Specifications

Product ID
Ratings are permanently marked on device
Wire
3
TerminationBack & Side

Box Specifications

Box Material
Aluminum
DimensionsThree ½” holes

Specifications

Country of Origin
China
RoHS CompliantFalse

Product Features

Brand
SmartlockPro
Grade
Residential/Commercial Specification Grade
FeatureSelf-Test Receptacle|Self Closing Lid|Weather Resistant|Tamper-Resistant
NEMA5-15R

Environmental Specifications

Operating Temperature
-35C to +66C

Electrical Specifications

Amperage
15 A
Grounding
Green Ground Screw
Short Circuit Current Rating
10KA
Trip Level
Class A, 5mA plus or minus 1mA
Wire
3
Dielectric VoltageWithstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
Pole2
Temperature RiseMax 30C after 100 cycles OL at 150 percent rated current
Voltage125 VAC

Downloads
