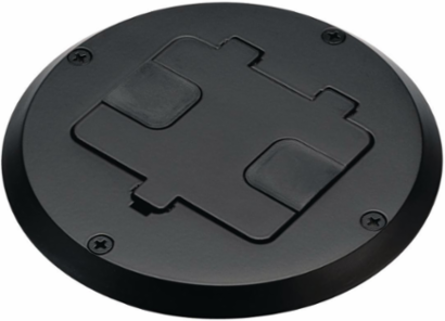

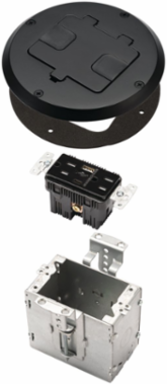

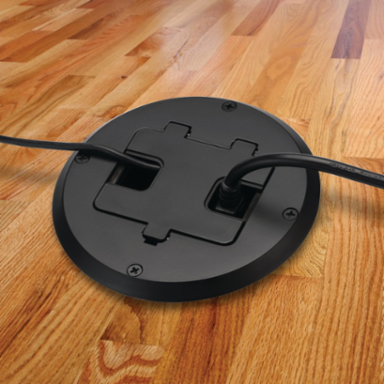

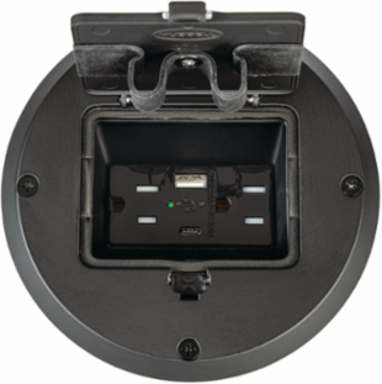

Raco 6239ACBK Single Gang Floor Box Kit with 15A Duplex Recessed Receptacle, featuring one Type A and one Type C USB charging port
- MPN: 6239ACBK
- UPC: 050169993224
- PPN: HBL-6239ACBK
- UNSPSC: 39121307
CAD
$149.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Single Gang Floor Box Kit with 15A Duplex Recessed Receptacle, featuring one Type A and one Type C USB charging port, Black Finish
Features
- 15A/125V Tamper Resistant/Weather resistant Duplex Receptacle
- Combination USB Ports, One Type A and One Type C
- Either side of the receptacle can be used with closed cover
- No unsightly plugs on the floor surface
- Three premium finishes - Brass plated, Nickel plated, and Black
- Complies with NEC Article 406.13
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Description - Slang
- Floor Box Kit
- Application
- Designed for carpet, tile, vinyl, laminate and hardwood flooring with wood sub-floors
- Height
- 5.938 in
- Size
- 5.813 in x 5.625 in x 5.938 in
- Width
- 5.625 in
- Class Code
- D03
- Harmonization Code
- 8536698000
- Stock Indicator
- S - Shelf Stock
- Base Unit of Measure
- EA
- Box Type
- Recessed Floor Box
- Carton - Total Units
- 1 EA
- Pallet Height
- 35.190 in
- Pallet Weight
- 650.150 lb.
- NAICS Code
- 3359326106
Cover ShapeRound
Dimensions5.813 in x 5.625 in x 5.938 in
ColorBlack
Length5.813 in
StandardUL Listed;CSA Certified
Cover TypeRound
Freight Class Code06202000
Image Actual Or RepresentativeA
Sub Class CodeD03D031
BOX SIZE5.900x5.800x5.600 (in)
Carton - SCC-14 Next Lower Level Sub Pack00050169993224
Pallet - GTIN - Package70050169993223
Pallet Length48.000 in
Pallet Width42.000 in
Certifications
- Buy American Compliant
- Contact Manufacturer
Certified ListedUL Listed;CSA Certified
