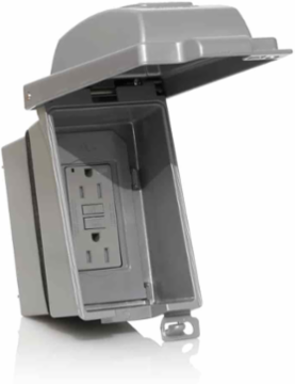

Leviton IUM1V-KBG 1-Gang Weatherproof Receptacle Kit, 15A, 125V, Aluminum Box, Gray
- MPN: IUM1V-KBG
- UPC: 078477404348
- PPN: LEV-IUM1V-KBG
CAD
$98.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

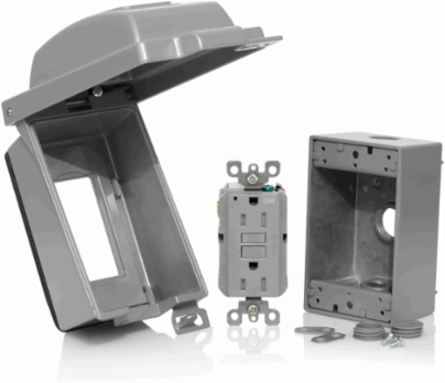

Weatherproof Kit Assembly Consisting of One Self-Test Tamper-Resistant ; Weather-Resistant Slim GFCI Receptacle (GFWT1-0GY); 15 A-125V Feed-Through, One Vertical Outdoor While-In-Use Coverplate with Self-Closing Cover (IUM1V-0GY), and One Aluminum Box (1GM53)
Features
- Complies with the National Electric Code® (2017) Section 406.9 for weatherproof enclosures in damp and wet locations.
- Ruggedly constructed to seal out moisture, dust, debris, and insects, while providing easy access to receptacles and switches
- Ideal for outdoor power, landscape, accent and holiday lighting
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
RoHS CompliantFalse
Standards and Certifications
- ANSI
- C-73
- CSA-C22.2 No. 144.1-06
- File LR-57811
- MIL-SPEC
- A-A-55459-SB
- UL 943
- File E48380
CSA C22.2 No. 42Yes
Fed Spec WC-596Yes
NOMYes
UL498Yes
Material Specifications
- Body Material
- Polycarbonate
- Grounding Screw
- Stainless Steel
- Tamper Resistant
- Yes
Face MaterialPolypropylene
Line ContactsBrass Double-Wipe .031 Thick
Terminal ScrewsStainless Steel
Cover Specifications
- Color
- Gray
- Material
- Aluminum
- Standards and Certifications
- UL/CSA
- Warranty
- 2-Year Limited
Gang1
OrientationVertical
TypeExtra-Duty
Mechanical Specifications
- Product ID
- Ratings are permanently marked on device
- Wire
- 3
TerminationBack & Side
Box Specifications
- Box Material
- Aluminum
DimensionsThree ½” holes
Product Features
- Brand
- SmartlockPro
- Grade
- Residential/Commercial Specification Grade
FeatureSelf-Test Receptacle|Self Closing Lid|Weather Resistant|Tamper-Resistant
NEMA5-15R
Environmental Specifications
- Operating Temperature
- -35C to +66C
Electrical Specifications
- Amperage
- 15 A
- Grounding
- Green Ground Screw
- Short Circuit Current Rating
- 10KA
- Trip Level
- Class A, 5mA plus or minus 1mA
- Wire
- 3
Dielectric VoltageWithstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
Pole2
Temperature RiseMax 30C after 100 cycles OL at 150 percent rated current
Voltage125 VAC
