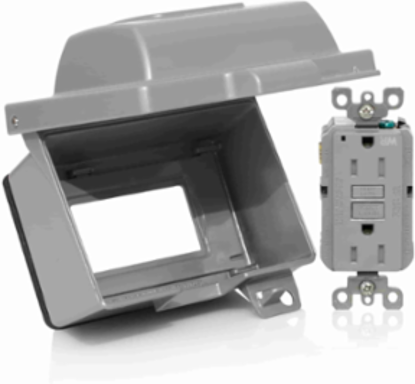

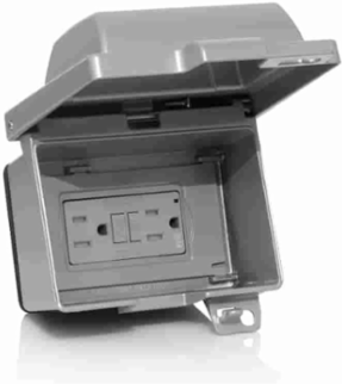

Leviton IUM1H-KRG 1-Gang Weatherproof Receptacle Kit, Aluminum, 15A, Gray
- MPN: IUM1H-KRG
- UPC: 078477321874
- PPN: LEV-IUM1H-KRG
CAD
$82.79
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Weatherproof Kit Assembly Consisting of One Self-Test Tamper-Resistant; Weather-Resistant Slim GFCI Receptacle (GFWT1-0GY); 15 A-125V Feed-Through, and Horizontal Outdoor WIU Coverplate with Self-Closing Cover (IUM1H-0GY)
Features
- Complies with the National Electric Code® (2017) Section 406.9 for weatherproof enclosures in damp and wet locations.
- Ruggedly constructed to seal out moisture, dust, debris, and insects, while providing easy access to receptacles and switches
- Ideal for outdoor power, landscape, accent and holiday lighting
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|
| RoHS Compliant | False |
|---|
Standards and Certifications
| ANSI | C-73 |
|---|---|
| CSA-C22.2 No. 144.1-06 | File LR-57811 |
| MIL-SPEC | A-A-55459-SB |
| UL 943 | File E48380 |
| CSA C22.2 No. 42 | Yes |
|---|---|
| Fed Spec WC-596 | Yes |
| NOM | Yes |
| UL498 | Yes |
Material Specifications
| Body Material | Polycarbonate |
|---|---|
| Grounding Screw | Stainless Steel |
| Tamper Resistant | Yes |
| Face Material | Polypropylene |
|---|---|
| Line Contacts | Brass Double-Wipe .031 Thick |
| Terminal Screws | Stainless Steel |
Cover Specifications
| Color | Gray |
|---|---|
| Material | Aluminum |
| Standards and Certifications | UL/CSA |
| Warranty | 2-Year Limited |
| Gang | 1 |
|---|---|
| Orientation | Horizontal |
| Type | Extra-Duty |
Mechanical Specifications
| Product ID | Ratings are permanently marked on device |
|---|---|
| Wire | 3 |
| Termination | Back & Side |
|---|
Product Features
| Brand | SmartlockPro |
|---|---|
| Grade | Residential/Commercial Specification Grade |
| Feature | Self-Test Receptacle|Self Closing Lid|Weather Resistant|Tamper-Resistant |
|---|---|
| NEMA | 5-15R |
Environmental Specifications
| Operating Temperature | -35C to +66C |
|---|
Electrical Specifications
| Amperage | 15 A |
|---|---|
| Grounding | Green Ground Screw |
| Short Circuit Current Rating | 10KA |
| Trip Level | Class A, 5mA plus or minus 1mA |
| Wire | 3 |
| Dielectric Voltage | Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06 |
|---|---|
| Pole | 2 |
| Temperature Rise | Max 30C after 100 cycles OL at 150 percent rated current |
| Voltage | 125 VAC |
