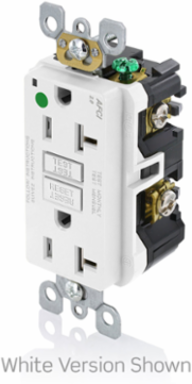

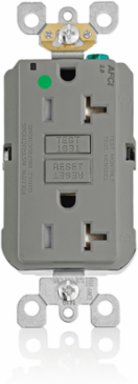

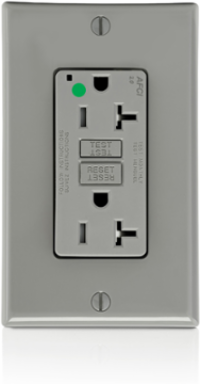

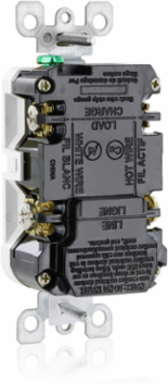

Leviton AFTR2-HGG 20 Amp AFCI Hospital Grade Tamper-Resistant Receptacle, NEMA 5-20R, Gray
- MPN: AFTR2-HGG
- UPC: 078477692202
- PPN: LEV-AFTR2-HGG
CAD
$94.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
AFCI Duplex Receptacle Outlet, Heavy-Duty Hospital Grade, Wallplate Included, Tamper-Resistant, 20 Amp, 125 Volt, Back or Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - Gray
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|
| RoHS Compliant | False |
|---|
Standards and Certifications
| ANSI | C-73 |
|---|---|
| Certification/Listing | UL, CSA, NOM-ANCE |
| Applicable Standards | UL 498 and 1699A, CSA C22.2 No. 42 and TIL No. M-02A, FedSpec W-C 596 |
|---|---|
| NEMA | WD-1 & WD-6 |
Material Specifications
| Body Material | Polycarbonate |
|---|---|
| Ground Clips | Brass |
| Line Contacts | Brass Double Wipe .031 Thick |
| Terminal Clamp | Plated Steel |
| Face Material | PBT |
|---|---|
| Grounding Screw | Plated Steel |
| Strap Material | Zinc-Plated Steel |
| Terminal Screws | Plated Steel |
Mechanical Specifications
| Product ID | Ratings are permanently marked on device |
|---|---|
| Terminal Accom. | 14-10 AWG solid or stranded |
| Termination | Back or Side Wire |
| Screw Terminal Torque | 14-18 in-lbs |
|---|---|
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
Product Features
| Color | Gray |
|---|---|
| Feature | Wallplate Included|Tamper-Resistant|Power Indication |
| Grade | Heavy-Duty Hospital Grade |
| Device Type | Duplex Receptacle Outlet |
|---|---|
| Function | AFCI |
Warranty
| Warranty | 2-Year Limited |
|---|
Environmental Specifications
| Flammability | Rated V-0 per UL 94 |
|---|
| Operating Temperature | -35C to +66C |
|---|
Electrical Specifications
| Amperage | 20 A |
|---|---|
| Grounding | Self-Grounding |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Wire | 3 |
| Dielectric Voltage | Withstands 2000V per UL498 |
|---|---|
| Pole | 2 |
| Voltage | 125 VAC |
AC Horsepower Ratings
| At Rated Voltage | 1 HP |
|---|
