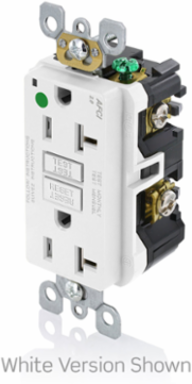

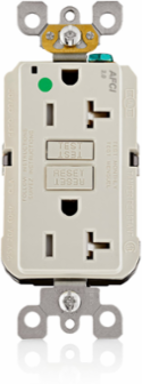

Leviton AFTR2-HGT 20 Amp AFCI Tamper-Resistant Duplex Receptacle, Heavy-Duty Hospital Grade, 125 VAC
Leviton AFTR2-HGT 20 Amp AFCI Tamper-Resistant Duplex Receptacle, Heavy-Duty Hospital Grade, 125 VAC
- MPN: AFTR2-HGT
- UPC: 078477692240
- PPN: LEV-AFTR2-HGT
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$94.29/ EA
Description
AFCI Duplex Receptacle Outlet, Heavy-Duty Hospital Grade, Wallplate Included, Tamper-Resistant, 20 Amp, 125 Volt, Back or Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - Light Almond
Specifications
Standards and Certifications
- ANSI
- C-73
- Certification/Listing
- UL, CSA, NOM-ANCE
Applicable StandardsUL 498 and 1699A, CSA C22.2 No. 42 and TIL No. M-02A, FedSpec W-C 596
NEMAWD-1 & WD-6
Material Specifications
- Body Material
- Polycarbonate
- Ground Clips
- Brass
- Line Contacts
- Brass Double Wipe .031 Thick
- Terminal Clamp
- Plated Steel
Face MaterialPBT
Grounding ScrewPlated Steel
Strap MaterialZinc-Plated Steel
Terminal ScrewsPlated Steel
Mechanical Specifications
- Product ID
- Ratings are permanently marked on device
- Terminal Accom.
- 14-10 AWG solid or stranded
- Termination

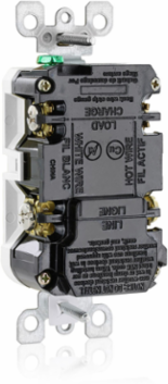

- Back or Side Wire
Screw Terminal Torque14-18 in-lbs
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Specifications
- Country of Origin
- China
RoHS CompliantFalse
Product Features
- Color
- Light Almond
- Feature

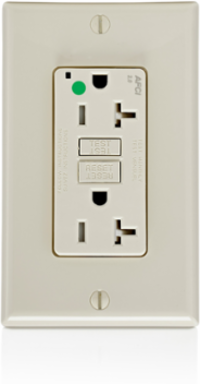

- Wallplate Included|Tamper-Resistant|Power Indication
- Grade
- Heavy-Duty Hospital Grade
Device TypeDuplex Receptacle Outlet
FunctionAFCI
Warranty
- Warranty
- 2-Year Limited
Environmental Specifications
- Flammability
- Rated V-0 per UL 94
Operating Temperature-35C to +66C
Electrical Specifications
- Amperage
- 20 A
- Grounding
- Self-Grounding
- Temperature Rise
- Max 30C after 250 cycles OL at 200 percent rated current
- Wire
- 3
Dielectric VoltageWithstands 2000V per UL498
Pole2
Voltage125 VAC
AC Horsepower Ratings
- At Rated Voltage
- 1 HP
