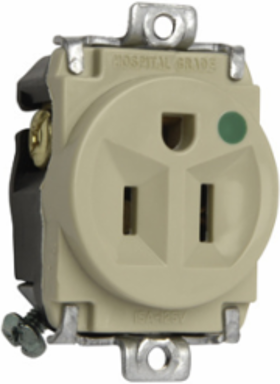

Pass & Seymour 8284I Hospital-Grade Single Receptacle 15A 125V, 1.68 Inch Height, Ivory
- MPN: 8284I
- UPC: 785007828061
- PPN: P-S-8284I
CAD
$39.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Hospital-Grade Single Receptacle 15A 125V, 1.68 Inch Height, Ivory
Features
- Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly.
- One-piece brass, triple-wipe power contacts for lasting retention.
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
- Impact-resistant nylon face and thermoplastic back body.
- Internal screw-pressure-plate back wire capable of accepting #14 : #10 AWG solid or stranded copper or copper-clad wire.
- Terminal compartments isolated from each other for positive conductor containment.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Documentation & Downloads
Specifications
Key Specifications
| Depth | 1.018 in |
|---|---|
| Color | Ivory |
| Finish | Matte |
| Country of Origin | Mexico |
| Amperage | 15.0 A |
| Standard | FEDSPEC |
| Number of Wires | 3.0 |
| Wire Size | 14 - 10 AWG |
| Number of Receptacles | 1.0 |
| Outlet Type | Straight Blade |
| Application Sector | Commercial |
| Features | Short Mounting Strap |
| Standard | cUL/CSA C22.2 No. 42 |
| Wire Connection Type | Screw Terminals |
| Dielectric Strength | Withstands 2000V minimum |
| Height | 1.68 in |
|---|---|
| Width | 1.32 in |
| Product Line | Pass & Seymour |
| Standard | UL498 |
| Voltage | 125.0 V |
| Mounting Type | Box |
| Indoor/Outdoor | Indoor |
| Wall Plate Included | No |
| Outlet Type | Hospital Grade |
| Number of Poles | Double Pole |
| Application Sector | Healthcare |
| NEMA Configuration Code | 5-15R |
| Connection Location | Back and Side |
| Warranty Type | 1-Year Limited Warranty |
