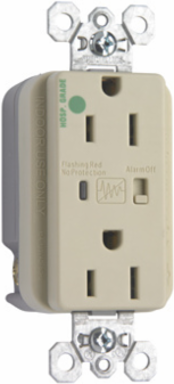

Pass & Seymour 8200ISP Hospital Grade Surge Protective Duplex Receptacle, 15 Amp, 125 Volt, Ivory
Pass & Seymour 8200ISP Hospital Grade Surge Protective Duplex Receptacle, 15 Amp, 125 Volt, Ivory
- MPN: 8200ISP
- UPC: 785007194487
- PPN: P-S-8200ISP
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$128.07/ EA
Description
Hospital Grade Surge Protective Duplex Receptacle offers increased transient protection, reliability and protection notification (Audible Alarm with LED Indicator). Back and Side Wire, 15amp 125volt, Ivory.
Features
- Solid-state LED monitor has 25-year minimum life expectancy. A high visibility, wide-angle lens indicates protection is in place.
- LED Indication: Steady green = protected, Flashing re = not protected, OFF = no power to unit
- Audible alarm alert of MOV damage. Alarm able to be turned On/Off.
- Wrap-around steel strap for structural integrity. Auto-ground is standard, for easier installation.
- Impact-resistant thermoplastic exterior resists impacts and scrapes.
- Triple-wipe, copper-alloy contacts for superior, more dependable connection.
- External screw-pressure-plate back and side wire terminals including ground with external back wire clamps (exclusive) accept #14 - #10 AWG copper or copper-clad, solid or stranded conductors.
- External pressure plate feature allows two conductors to be terminated by a single screw.
- Thermal protection in 3 modes. 3 17mm dual pack MOVs absorb up to 340 Joules of excess energy in each leg (L-N, L-G, N-G) with 24,000 amp current handling capability for full, equal and symmetrical protection.
- For covering patents, see www.legrand.us/patents.
Specifications
Specifications
- Country of Origin
- China
- Product Line
- Pass & Seymour
- Voltage
- 125.0 V
- Standard
- cUL UL1449
- Wire Size
- 14 - 10 AWG
- Features
- Surge Protection
- Outlet Type
- Hospital Grade
- Number of Poles
- Double Pole
- Application Sector
- Healthcare
- Connection Location
- Back and Side
- Operating Temperature Max
- 60.0 °C
- Operating Temperature
- -40°-60°C
- Environmental Conditions
- Flammability: UL94 V2
- Standard
- UL498: CSA C22.2 No. 42: ANSI/EEE C62.41 (Formerly IEEE 587)
- Standard
- ANSI/IEEE C62.45 Installation Categories “A” (Ring Wave) “B” (Unidirectional Impulse).
ColorIvory
Amperage15.0 A
Number of Wires3.0
Indoor/OutdoorIndoor
Wall Plate IncludedNo
Number of Receptacles2.0
Outlet TypeStraight Blade
Application SectorCommercial
NEMA Configuration Code5-15R
Warranty Type1-Year Limited Warranty
Operating Temperature Min-40.0 °C
Wire Connection TypeInternal Pressure Plates
FeaturesSingle Piece Plated Steel Mounting Strap
Special FeaturesSolid-state LED monitor has 25-year minimum life expectancy. A high visibility, wide-angle lens indicates protection is in place. LED Indication: steady green = protected, flashing red = not protected, OFF = no power to unit. Audible alarm alert of MOV damage. Alarm able to be turned On/Off. Wrap-around steel strap for structural integrity. Auto-ground is standard, for easier installation. Impact-resistant nylon exterior resists impacts and scrapes. Triple-wipe, copper-alloy contacts for superior, more dependable connection. External screw-pressure-plate back and side wire terminals including ground with external back wire clamps (exclusive) accept #14 - #10 AWG copper or copper-clad, solid or stranded conductors. External pressure plate feature allows two conductors to be terminated by a single screw. Thermal protection in 3 modes. 3 17mm dual pack MOVs absorb up to 340 Joules of excess energy in each leg (L-N, L-G, N-G) with 24,000 amp current handling capability for full, equal and symmetrical protection. Protection response time in less than one nanosecond.
