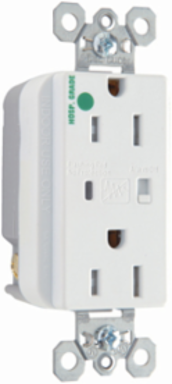

Pass & Seymour TR8200WSP Tamper-Resistant Hospital Grade Surge Protective Duplex Receptacle 15Amp 125Volt
- MPN: TR8200WSP
- UPC: 785007019629
- PPN: P-S-TR8200WSP
CAD
$146.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Tamper-Resistant Hospital Grade Surge Protective Duplex Receptacle 15Amp 125Volt
Features
- Dual mechanical shutter system to help prevent insertion of foreign objects.
- Auto-ground clip assures positive ground.
- Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring.
- Backed-out tri-drive brass terminal screws for faster installation.
- Internal screw-pressure-plate back and side wire capability.
- Two back wire holes for additional wiring flexibility.
- Corrosion-resistant plated steel strap is locked in to face and back body to resist pulling away from the face/body assembly.
- .032 inch thick brass triple-wipe power contacts.
- Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest.
- For covering patents, see www.legrand.us/patents.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Color
- White
- Phase
- Single
- Voltage
- 125.0 V
- Indoor/Outdoor
- Indoor
- Features
- Audible Alarm
- Is Tamper-Resistant
- Yes
- Features
- Surge Protection
- Outlet Type
- Hospital Grade
- Outlet Type
- Tamper-Resistant
- NEMA Configuration Code
- 5-15R
- Environmental Conditions
- UL94 V2
- Warranty Type
- 1-Year Limited Warranty
- Operating Temperature Max
- 60.0 °C
- Operating Temperature
- -40°-60°C
- Features
- Single Piece Plated Steel Mounting Strap
Special FeaturesTamper-Resistant Hospital Grade Extra Heavy-Duty Surge Protective Duplex Receptacle offers increased transient protection, reliability and protection notification (Audible Alarm with LED Indicator)
Product LinePass & Seymour
Amperage15.0 A
Number of Wires3.0
Wire Size14 - 10 AWG
Wall Plate IncludedNo
FeaturesIndicator Lights
Number of Receptacles2.0
Number of PolesDouble Pole
Application SectorCommercial
Application SectorResidential
Connection LocationBack and Side
Application SectorMulti-Dwelling Unit
Operating Temperature Min-40.0 °C
Wire Connection TypeInternal Pressure Plates
