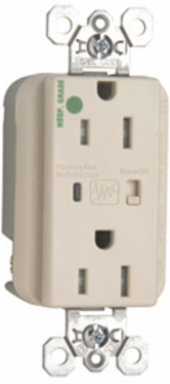

Pass & Seymour TR8200LASP Tamper-Resistant Hospital Grade Heavy Duty Surge Protective Duplex Receptacle 15 Amp 125 Volt, Light Almond
- MPN: TR8200LASP
- UPC: 785007019643
- PPN: P-S-TR8200LASP
CAD
$146.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Tamper-Resistant Hospital Grade Heavy Duty Surge Protective Duplex Receptacle 15 Amp 125 Volt, Light Almond
Features
- Dual mechanical shutter system to help prevent insertion of foreign objects.
- Auto-ground clip assures positive ground.
- Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring.
- Backed-out tri-drive brass terminal screws for faster installation.
- Internal screw-pressure-plate back and side wire capability.
- Two back wire holes for additional wiring flexibility.
- Corrosion-resistant plated steel strap is locked in to face and back body to resist pulling away from the face/body assembly.
- .032 inch thick brass triple-wipe power contacts.
- Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest.
- For covering patents, see www.legrand.us/patents.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Color | Light Almond |
| Phase | Single |
| Voltage | 125.0 V |
| Indoor/Outdoor | Indoor |
| Features | Audible Alarm |
| Is Tamper-Resistant | Yes |
| Features | Surge Protection |
| Outlet Type | Hospital Grade |
| Outlet Type | Tamper-Resistant |
| NEMA Configuration Code | 5-15R |
| Environmental Conditions | UL94 V2 |
| Warranty Type | 1-Year Limited Warranty |
| Operating Temperature Max | 60.0 °C |
| Operating Temperature | -40°-60°C |
| Features | Single Piece Plated Steel Mounting Strap |
| Special Features | Tamper-Resistant Hospital Grade Extra Heavy-Duty Surge Protective Duplex Receptacle offers increased transient protection, reliability and protection notification (Audible Alarm with LED Indicator) |
|---|---|
| Product Line | Pass & Seymour |
| Amperage | 15.0 A |
| Number of Wires | 3.0 |
| Wire Size | 14 - 10 AWG |
| Wall Plate Included | No |
| Features | Indicator Lights |
| Number of Receptacles | 2.0 |
| Number of Poles | Double Pole |
| Application Sector | Commercial |
| Application Sector | Residential |
| Connection Location | Back and Side |
| Application Sector | Multi-Dwelling Unit |
| Operating Temperature Min | -40.0 °C |
| Wire Connection Type | Internal Pressure Plates |
