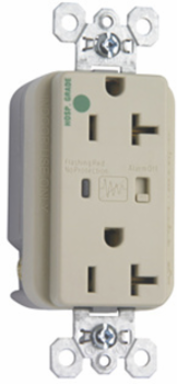

Pass & Seymour 8300LASP 20A 125V Hospital-Grade Surge Protective Duplex Receptacle, 1.225 Inch Depth, Light Almond
- MPN: 8300LASP
- UPC: 785007194043
- PPN: P-S-8300LASP
CAD
$153.07
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
20A 125V Hospital-Grade Surge Protective Duplex Receptacle, 1.225 Inch Depth, Light Almond
Features
- Solid-state LED monitor has 25-year minimum life expectancy. A high visibility, wide-angle lens indicates protection is in place.
- One-piece brass, triple-wipe power contacts for lasting retention.
- Audible alarm alert of MOV damage. Alarm able to be turned On/Off.
- Wrap-around steel strap for structural integrity. Auto-ground is standard, for easier installation.
- Impact-resistant thermoplastic exterior resists impacts and scrapes.
- Triple-wipe, copper-alloy contacts for superior, more dependable connection.
- Thermal protection in 3 modes. 3 17mm dual pack MOVs absorb up to 340 Joules of excess energy in each leg (L-N, L-G, N-G) with 24,000 amp current handling capability for full, equal and symmetrical protection.
- Protection response time in less than one nanosecond.
- For covering patents, see www.legrand.us/patents.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 1.225 in
- Color
- Light Almond
- Product Line
- Pass & Seymour
- Country of Origin
- China
- Number of Wires
- 3.0
- Indoor/Outdoor
- Indoor
- Wall Plate Included
- No
- Number of Receptacles
- 2.0
- Outlet Type
- Straight Blade
- Application Sector
- Commercial
- NEMA Configuration Code
- 5-20R
- Warranty Type
- 1-Year Limited Warranty
- Operating Temperature Min
- -40.0 °C
- Wire Connection Type
- Internal Pressure Plates
- Features
- Single Piece Plated Steel Mounting Strap
- Special Features
- Solid-state LED monitor has 25-year minimum life expectancy. A high visibility, wide-angle lens indicates protection is in place. LED Indication: steady green = protected, flashing red = not protected, OFF = no power to unit. Audible alarm alert of MOV damage. Alarm able to be turned On/Off. Wrap-around steel strap for structural integrity. Auto-ground is standard, for easier installation. Impact-resistant nylon exterior resists impacts and scrapes. Triple-wipe, copper-alloy contacts for superior, more dependable connection. External screw-pressure-plate back and side wire terminals including ground with external back wire clamps (exclusive) accept #14 - #10 AWG copper or copper-clad, solid or stranded conductors. External pressure plate feature allows two conductors to be terminated by a single screw. Thermal protection in 3 modes. 3 17mm dual pack MOVs absorb up to 340 Joules of excess energy in each leg (L-N, L-G, N-G) with 24,000 amp current handling capability for full, equal and symmetrical protection. Protection response time in less than one nanosecond.
Height2.8 in
Width1.75 in
Amperage20.0 A
Voltage125.0 V
StandardcUL UL1449
Wire Size14 - 10 AWG
FeaturesSurge Protection
Outlet TypeHospital Grade
Number of PolesDouble Pole
Application SectorHealthcare
Connection LocationBack and Side
Operating Temperature Max60.0 °C
Operating Temperature-40°-60°C
Environmental ConditionsFlammability: UL94 V2
StandardUL498: CSA C22.2 No. 42: ANSI/EEE C62.41 (Formerly IEEE 587)
StandardANSI/IEEE C62.45 Installation Categories “A” (Ring Wave) “B” (Unidirectional Impulse).
