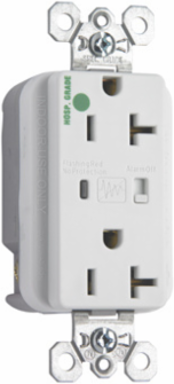

Pass & Seymour 8300WSP 20A 125V Hospital-Grade Surge Protective Duplex Receptacle, White, 1.225 Inch Depth, 1.75 Inch Width, 2.8 Inch Height
Pass & Seymour 8300WSP 20A 125V Hospital-Grade Surge Protective Duplex Receptacle, White, 1.225 Inch Depth, 1.75 Inch Width, 2.8 Inch Height
- MPN: 8300WSP
- UPC: 785007194548
- PPN: P-S-8300WSP
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$145.08/ EA
Description
Hospital Grade Surge Protective Duplex Receptacle offers increased transient protection, reliability and protection notification (Audible Alarm with LED Indicator). Back and Side Wire, 20A, 125V, Blue.
Features
- Solid-state LED monitor has 25-year minimum life expectancy. A high visibility, wide-angle lens indicates protection is in place.
- One-piece brass, triple-wipe power contacts for lasting retention.
- Audible alarm alert of MOV damage. Alarm able to be turned On/Off.
- Wrap-around steel strap for structural integrity. Auto-ground is standard, for easier installation.
- Impact-resistant thermoplastic exterior resists impacts and scrapes.
- Triple-wipe, copper-alloy contacts for superior, more dependable connection.
- Thermal protection in 3 modes. 3 17mm dual pack MOVs absorb up to 340 Joules of excess energy in each leg (L-N, L-G, N-G) with 24,000 amp current handling capability for full, equal and symmetrical protection.
- Protection response time in less than one nanosecond.
- For covering patents, see www.legrand.us/patents.
Specifications
Specifications
- Depth
- 1.225 in
- Height
- 2.8 in
- Width
- 1.75 in
ColorWhite
Product LinePass & Seymour
Country of OriginMexico
