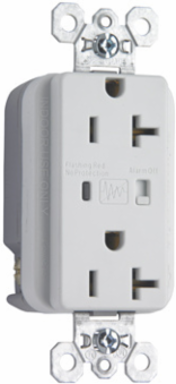

Pass & Seymour 5362WSP 20A 125V Surge Protective Duplex Receptacle, White, 1.75 Inch Width
- MPN: 5362WSP
- UPC: 785007193442
- PPN: P-S-5362WSP
CAD
$127.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
20A 125V Surge Protective Duplex Receptacle, White, 1.75 Inch Width
Features
- Solid-state LED monitor has 25-year minimum life expectancy. A high visibility, wide-angle lens indicates protection is in place.
- .032 inch thick, brass, triple-wipe power contacts for lasting retention.
- Audible alarm alert of MOV damage. Alarm able to be turned On/Off.
- Wrap-around steel strap for structural integrity. Auto-ground is standard, for easier installation.
- Impact-resistant thermoplastic exterior resists impacts and scrapes.
- Triple-wipe, copper-alloy contacts for superior, more dependable connection.
- Thermal protection in 3 modes. 3 17mm dual pack MOVs absorb up to 300 Joules of excess energy in each leg (L-N, L-G, N-G) with 24,000 amp current handling capability for full, equal and symmetrical protection.
- Protection response time in less than one nanosecond.
- For covering patents, see www.legrand.us/patents.
Documentation & Downloads
Specifications
Key Specifications
| Depth | 1.225 in |
|---|---|
| Color | White |
| Width | 1.75 in |
| Product Line | Pass & Seymour |
| Voltage | 125.0 V |
| Indoor/Outdoor | Indoor |
| Features | Audible Alarm |
| Features | Indicator Lights |
| Outlet Type | Straight Blade |
| Outlet Type | Surge Protected |
| NEMA Configuration Code | 5-20R |
| Wire Connection Type | Screw Terminals |
| Operating Temperature Max | 60.0 °C |
| Operating Temperature | -40°-60°C |
| Height | 2.8 in |
|---|---|
| Finish | Matte |
| Country of Origin | China |
| Amperage | 20.0 A |
| Number of Wires | 3.0 |
| Wire Size | 14 - 10 AWG |
| Wall Plate Included | No |
| Number of Receptacles | 2.0 |
| Number of Poles | Double Pole |
| Application Sector | Commercial |
| Connection Location | Back and Side |
| Warranty Type | 1-Year Limited Warranty |
| Operating Temperature Min | -40.0 °C |
| Wire Connection Type | Internal Pressure Plates |
