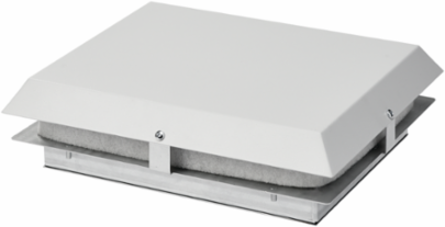

nVent Hoffman HR1626414 12.66 x 15.81 x 4.18 Inch Top-Mount Filter Fan, 230V, 266 CFM, Light Gray Steel
- MPN: HR1626414
- UPC: 783510342227
- PPN: HOF-HR1626414
- UNSPSC: 40101604
CAD
$1305.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
HR Top-Mount Filter Fans bolt in place to the top of enclosure ensuring a tight seal. This HR16 Top-Mount Filter Fan, HR1626414 item is rated 230V 266 CFM with a material of Steel colored Lt Gray.
Features
- Enclosure top mounting
- Bolt in place to ensure a tight seal
- Terminal block connections
- Free airflow up to 266 CFM (452 m3 /hr.) or 348 CFM (591 m3 /hr.)
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Nominal Voltage
- 230
- Width (W)
- 402
- Max Current
- 0.48
- Material
- Mild Steel
- Color Code
- RAL 7035
- Size
- 12.66 x 15.81 x 4.18 inch
- Flow Rate
- 250 CFM
- Frequency Rating
- 50/60 Hz
- Amperage Rating
- 0.82 Amps
- Fan Speed
- 2980 RPM
- Mounting
- Top Mount
- Motor Insulation
- TOTALLY ENCLOSED WITH CLASS F INSULATION
- Ambient Temperature
- 14-131 F
- Finish
- Powder Coated
Airflow452
Height (H)322
Depth (D)106
Operating Temperature-10
ColorLight Gray
Weight14.8
Blade Size7.48 inch
Voltage Rating230 Volts
Phase1-phase
Power108 Watts
Sound Pressure Level68 dBA
Motor TypeAC
Shaft Diameter1.063 inch
Housing MaterialMild Steel
Blade MaterialPolyamide 66 Resin
