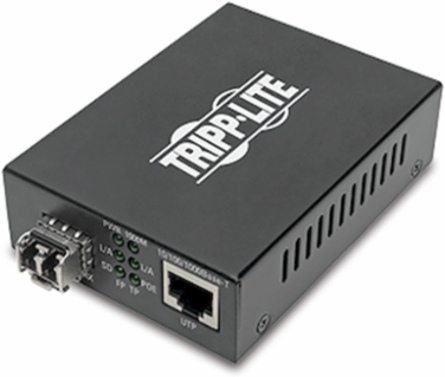

Tripp Lite N785-P01-LC-MM1 Gigabit Multimode Fiber to Ethernet Media Converter, 550m, PoE+ 1Gbps
- MPN: N785-P01-LC-MM1
- UPC: 037332236906
- PPN: TRP-N785-P01-LC-MM1
CAD
$497.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Gigabit Multimode Fiber to Ethernet Media Converter, 550m, PoE+ 1Gbps
Features
- Extends power (48 VDC) + data (1000 Mbps) to any edge PoE+ device
- Supports multimode fiber optic cable with LC connectors up to 550 m (1804 ft.)

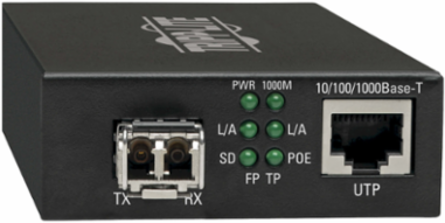

- RJ45 jack supports auto-MDI/MDIZ to bridge various network devices
- Supports both full- and half-duplex operation
- Works in tandem with Tripp Lite N785-001-LC-MM (sold separately)
- 2-year limited warranty
- Extends Power and Data to a PoE+ Device up to 550 Meters via LC Multimode Fiber Cable
- Supports Power over Ethernet to Save You Money and Give You More Installation Choices
- Supports Auto-Sensing of Network Speed and Other Advanced Functions
- Works in Tandem with Tripp Lite’s N785-001-LC-MM Media Converter
- Completely Plug-and-Play with No Additional Software Required for Connection
Documentation & Downloads
Specifications
Additional
- Network Speed
- 1 Gbps
- Operating Temperature Range
- -4 to 140 F (-20 to 60 C)
- Relative Humidity
- 5% to 90% RH, Non-Condensing
- Unit Weight
- 0.44 lbs (0.20 kg)
- Side B - Connector 1
- LC Duplex (Female)
- Wavelength
- 850 nm

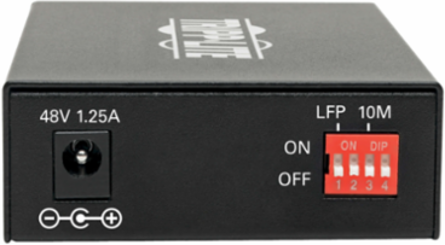

- External Power Supply Input
- 100-240 V~, 50/60 Hz, 1.5 A
- External Power Supply Cord Length
- 3.6 ft
- External Power Supply Certifications
- CCC, FCC, PSE, UL, cUL
- Color
- Black
Transmission Distance550 m (1804 ft)
Storage Temperature Range-4 to 158 F (-20 to 70 C)
Unit Dimensions0.98 x 3.74 x 2.76 in.
Side A - Connector 1RJ45 (Female)
Fiber TypeMultimode
PoE Voltage48 VDC
External Power Supply Output48 V, 1.25 A
External Power Supply PlugNEMA 5-15P North America
Working ModeFull/Half Duplex
Product Warranty Period2-year limited warranty
