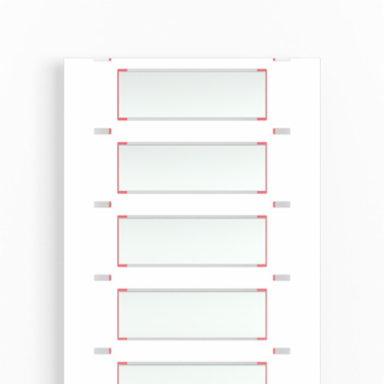

Weidmuller 2437690000 HS 3.2-9.5/50 MM W
- MPN: 2437690000
- PPN: WDM-2437690000
CAD
$2.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

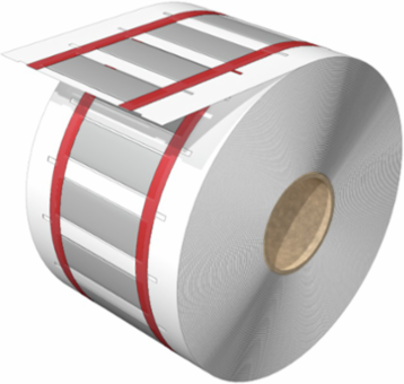

Conductor and cable markers, 3.2 - 9.5 mm, 50.8 x 15.1 mm, white
Specifications
General Data
| Colour | white |
|---|---|
| Material | Polyolefine |
| Operating temperature range | -55...135 °C |
| Width | 15.1 mm |
| Halogen | Yes |
|---|---|
| Number per roll | 500 |
| Recommended industries | Plant manufacture, Energy, Device manufacturer, Machinery |
| compatible printer | 2599430000 2599440000 1140490000 |
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 15.1 mm |
|---|---|
| Height | 50.8 mm |
| Depth | 0.77 mm |
| Net weight | 1.184 g |
| Width (inches) | 0.594 inch |
|---|---|
| Height (inches) | 2 inch |
| Depth (inches) | 0.03 inch |
Classifications
| ETIM 6.0 | EC001530 |
|---|---|
| eClass 9.0 | 27-40-04-01 |
| eClass 10.0 | 27-40-04-01 |
| ETIM 7.0 | EC001530 |
|---|---|
| eClass 9.1 | 27-40-04-01 |
Conductor And Cable Markers
| Conductor O.D. | 3.2 - 9.5 mm |
|---|---|
| Conductor O.D., min. | 3.2 mm |
| Conductor cross-section, min. | 4 mm² |
| Rate of shrinkage | 3:1 |
| Conductor O.D., max. | 9.5 mm |
|---|---|
| Conductor cross-section, max. | 16 mm² |
| Halogen | Yes |
| Recommended shrinking temperature | 90 °C |
