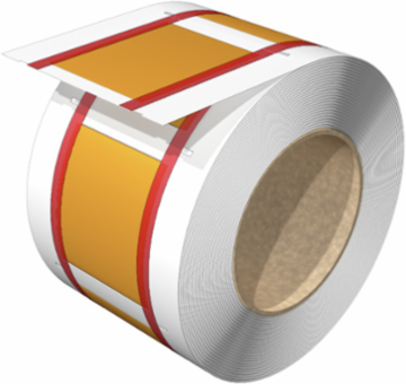

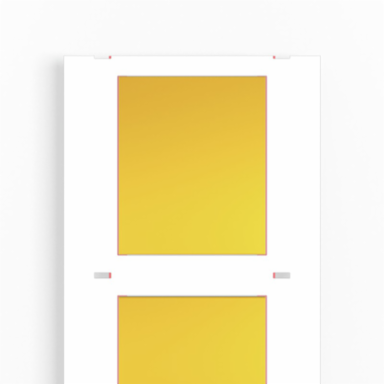

Weidmuller 2437980000 HS-HF 19.5-38.1/50 MM Y
- MPN: 2437980000
- PPN: WDM-2437980000
CAD
$6.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Conductor and cable markers, 19.5 - 38.1 mm, 50.8 x 60.5 mm, yellow
Documentation & Downloads
Specifications
General Data
| Colour | yellow |
|---|---|
| Material | Polyolefine |
| Width | 60.5 mm |
| Halogen | No |
|---|---|
| Operating temperature range | -55...105 °C |
| compatible printer | 2599430000 2599440000 1140490000 |
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 60.5 mm |
|---|---|
| Height | 50.8 mm |
| Depth | 0.77 mm |
| Net weight | 6.5 g |
| Width (inches) | 2.382 inch |
|---|---|
| Height (inches) | 2 inch |
| Depth (inches) | 0.03 inch |
Classifications
| ETIM 6.0 | EC001530 |
|---|---|
| eClass 9.0 | 27-40-04-01 |
| eClass 10.0 | 27-40-04-01 |
| ETIM 7.0 | EC001530 |
|---|---|
| eClass 9.1 | 27-40-04-01 |
Conductor And Cable Markers
| Conductor O.D. | 19.5 - 38.1 mm |
|---|---|
| Conductor O.D., min. | 19.5 mm |
| Conductor cross-section, min. | 70 mm² |
| Rate of shrinkage | 2:1 |
| Conductor O.D., max. | 38.1 mm |
|---|---|
| Conductor cross-section, max. | 240 mm² |
| Halogen | No |
| Recommended shrinking temperature | 90 °C |
