Weidmuller 2526340000 HS-HF 6.4-12.7/12 MM Y
- MPN: 2526340000
- PPN: WDM-2526340000
CAD
$1.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

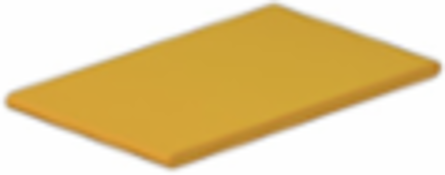

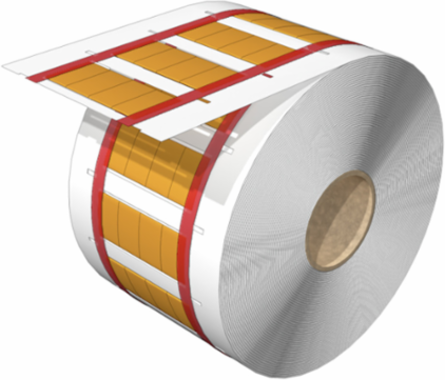

Conductor and cable markers, 6.4 - 12.7 mm, 12.7 x 20.9 mm, yellow
Documentation & Downloads
Specifications
General Data
- Colour
- yellow
- Material
- Polyolefine
- Operating temperature range
- -55...105 °C
- compatible printer
- 2599430000 2599440000 1140490000
HalogenNo
Number per roll2,000 Stück
Width20.9 mm
Approvals
- ROHS
- Conform
Dimensions And Weights
- Width
- 20.9 mm
- Height
- 12.7 mm
- Depth
- 0.77 mm
- Net weight
- 0.472 g
Width (inches)0.823 inch
Height (inches)0.5 inch
Depth (inches)0.03 inch
Classifications
- ETIM 6.0
- EC001530
- eClass 9.0
- 27-40-04-01
- eClass 10.0
- 27-40-04-01
ETIM 7.0EC001530
eClass 9.127-40-04-01
Conductor And Cable Markers
- Conductor O.D.
- 6.4 - 12.7 mm
- Conductor O.D., min.
- 6.4 mm
- Conductor cross-section, min.
- 35 mm²
- Rate of shrinkage
- 2:1
Conductor O.D., max.12.7 mm
Conductor cross-section, max.6 mm²
HalogenNo
Recommended shrinking temperature90 °C
