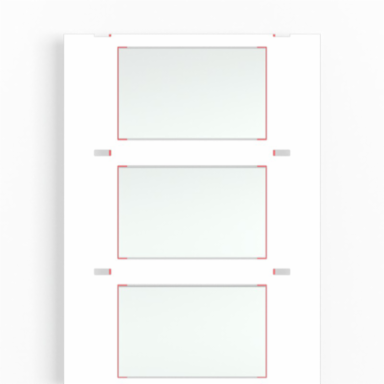

Weidmuller 2438210000 HS-HF 9.5-19.1/50 MM W
- MPN: 2438210000
- PPN: WDM-2438210000
CAD
$3.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

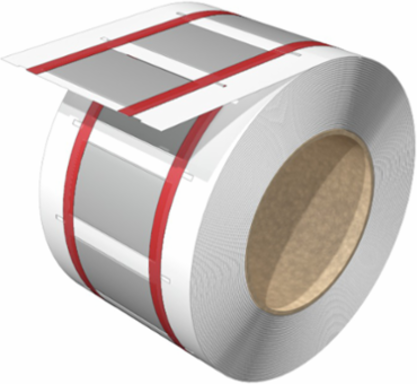

Conductor and cable markers, 9.5 - 19.1 mm, 50.8 x 30.9 mm, white
Documentation & Downloads
Specifications
General Data
- Colour
- white
- Material
- Polyolefine
- Width
- 30.9 mm
HalogenNo
Operating temperature range-55...105 °C
compatible printer2599430000 2599440000 1140490000
Approvals
- ROHS
- Conform
Dimensions And Weights
- Width
- 30.9 mm
- Height
- 50.8 mm
- Depth
- 0.77 mm
- Net weight
- 1.6 g
Width (inches)1.217 inch
Height (inches)2 inch
Depth (inches)0.03 inch
Classifications
- ETIM 6.0
- EC001530
- eClass 9.0
- 27-40-04-01
- eClass 10.0
- 27-40-04-01
ETIM 7.0EC001530
eClass 9.127-40-04-01
Conductor And Cable Markers
- Conductor O.D.
- 9.5 - 19.1 mm
- Conductor O.D., min.
- 9.5 mm
- Conductor cross-section, min.
- 16 mm²
- Rate of shrinkage
- 2:1
Conductor O.D., max.19.1 mm
Conductor cross-section, max.70 mm²
HalogenNo
Recommended shrinking temperature90 °C
